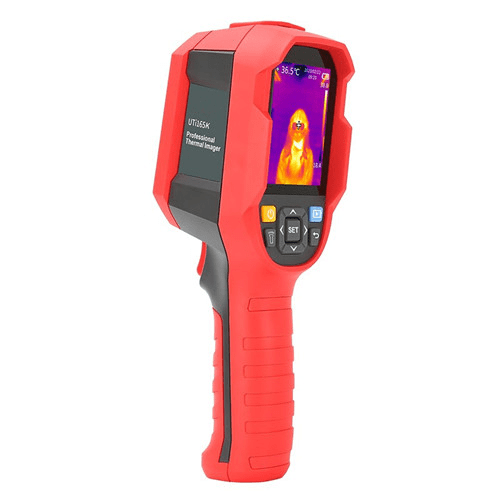

UTi165H Thermal Imager
Unfortunately, the UTi165H has been discontinued, checkout our other Thermal Cameras for more alternatives.
Features:
- HI/LO Temperature alarm: Central point temperature measurement, high/low temperature auto tracking
- Real time temperature display
- High image visibility
- Adjustable emissivity
- Includes PC software for analysis
- Photograph function
- Supports SD card storage
- Type C USB port for charging and data transfer
Specifications
- Sensor: Uncooled focal plane
- Temperature range: 30 to 45 C
- Resolution: 0.1 C
- Accuracy: +/- 0.5 C at 1 metre
- Minimum measuring distance: 15 cm
- Temperature measurement response time: less than or equal to 500 ms (95% of reading)
- Thermal resolution: 19200 (160 x 120)
- Pixel dimensions: 12 um
- Palettes: Black white, red white, blue white, iron red, rainbow
- Bandwith of infrared spectroscopy: 8 to 14 um
- Field of view: 56 (H) x 42 (V)
- Instantaneous field of view (IFOV): 6mrad
- Thermal imaging sensitivity: less than 50 mk
- Frame rate: less than 9 Hz
- Temperature display: center temperature measurement and high temperature tracking
- Image format: BMP
- Image modes: Thermal imagery
- Temperature measuring point: Besides central point, 3 temperature measuring points can be added
- Display resolution: 320 x 240
- Data communication: Type-C USB
- Auto power off: Selectable (5, 10, or 30 minutes)
- Service time: about 6 hours
- Image storage: Micro SD card
- Display: 2.8 inch. TFT LCD
- Power: A single Li-ion 3.7V/5000 mAh 26650 battery
- Gross weight: 2.2 kg
- Includes: manual, type-c usb, 16 gb TF card
Warranty
- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
