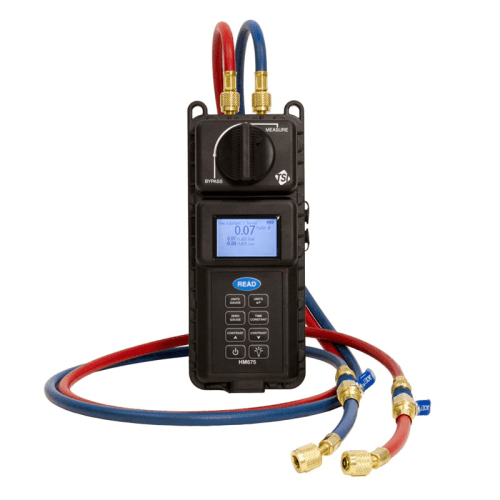

The TSI HM685 Hydronic Manometer and data logger is used to balance hydronic heating and cooling systems, check pump performance and set balancing valves. It can measure and display differential, high side, and low side pressures simultaneously, without the need to change hose connections or instrument valve settings. Includes downloading software, computer cable and temperature probe.
Regular price
$7,852.00 AUD
+ GST
$8,637.20 AUD Inc. GST
$8,637.20 AUD Inc. GST
Features
- Provides for inputs for two temperature probes
- Differential pressure range +/- 300 psi (+/- 2068 kPa)
- Gauge pressure range -20 to 300 psi (-138 to 2068 kPa)
- Calculates flow using valve manufacturers Cv (Kv) factors [up to 100 Cv (Kv) can be entered]
- Calculates heat flow, impeller diameter and brake power
- Reads in. H 2 O, ft. H 2 O, psi, in. Hg, mm H 2 O, kPa, mm Hg, or bar
- Stores up to 4,000 data points to memory for later recall/download to a PC using CompuDat USB Software and USB interface cable
- Intuitive menu structure for easy navigation and instrument set up
- Large backlit display for use in low light areas
- Operates on four alkaline or NiMH rechargeable batteries
- Robust, splash-proof case
- Meter weight with batteries is 2.65 lbs (1.20 kg)
Specifications
Pressure
- Differential Range: -300 to 300 psi (-2,068 to 2,068 kPa)
- Gauge Range: -20 to 300 psi (-138 to 2,068 kPa)(-40 to 610 in. Hg)
- Resolution (best): 0.001 psi (0.01 kPa)(0.01 in. Hg)
- Accuracy: +/- 1% of reading plus .072 psi (0.5 kPa) (0.15 in. Hg)
- Units: psi, in. H2O, ft H2O, kPa, mm Hg, in. Hg, m H2O, bar
Temperature
- Operating (electronics): 5 to 45 C (40 to 113 F)
- Storage: -20 to 60 C (-4 to 140 F)
- Liquid Media: 0 to 82 C (32 to 180 F)
- Probe (immersion): -40 to 121 C (-40 to 250 F)
- Resolution: 0.1 F (0.1 C)
- Accuracy: +/- 0.5% of reading 0.7 C (1.2 F)
- Units: C and F
Flow
- Range: -22,712 to 22,271 m3/h, -99,999 to 99,999 USGPM (-6,309 to 6,309 l/s)
- Resolution (best) Accuracy: 0.0001 USGPM (0.00001 l/s) per pressure accuracy + valve deviation
- Units: USGPM, UKGPM, m3/h, l/s, l/m
Data logger
- Time Constant: User selectable (1, 5, 10, 20, and 30 seconds)
- Statistics: min, max, average, sum up to 4,000 readings
- Data Storage: 4,000 combined readings, 100 Test IDs
- Logging interval: User selectable (1 to 3,600 seconds)
Warranty
- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
