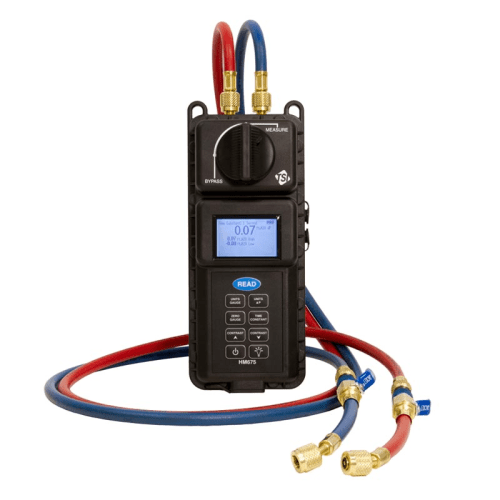

TSI HM675 Hydronic Manometer
Backorder Now, once ordered your item will dispatch before the 31st of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The TSI HM675 Hydronic Manometer is used to balance hydronic heating and cooling systems, check pump performance and set balancing valves. It can measure and display differential, high side, and low side pressures simultaneously, without the need to change hose connections or instrument valve settings.
Regular price
$6,592.62 AUD
+ GST
$7,251.89 AUD Inc. GST
$7,251.89 AUD Inc. GST
Features:
- Provides for inputs for two temperature probes
- Differential pressure range +/- 300 psi (+/- 2068 kPa)
- Gauge pressure range -20 to 300 psi (-138 to 2068 kPa)
- Reads in. H 2 O, ft. H 2 O, psi, in. Hg, mm H 2 O, kPa, mm Hg, or bar
- Large backlit display for use in low light areas
- Operates on four alkaline or NiMH rechargeable batteries
- Robust, splash-proof case
- Meter weight with batteries is 2.65 lbs (1.20 kg)
Specifications
Pressure:
- Differential Range: -300 to 300 psi (-2,068 to 2,068 kPa)
- Gauge Range: -20 to 300 psi (-138 to 2,068 kPa)(-40 to 610 in. Hg)
- Resolution (best): 0.001 psi (0.01 kPa)(0.01 in. Hg)
- Accuracy: +/- 1% of reading plus .072 psi (0.5 kPa) (0.15 in. Hg)
- Units: psi, in. H2O, ft H2O, kPa, mm Hg, in. Hg, m H2O, bar
Temperature:
- Operating (electronics): 5 to 45 C (40 to 113 F)
- Storage: -20 to 60 C (-4 to 140 F)
- Liquid Media: 0 to 82 C (32 to 180 F)
- Probe (immersion): -40 to 121 C (-40 to 250 F)
- Resolution: 0.1 F (0.1 C)
- Accuracy: +/- 0.5% of reading 0.7 C (1.2 F)
- Units: C and F
Warranty:
- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
