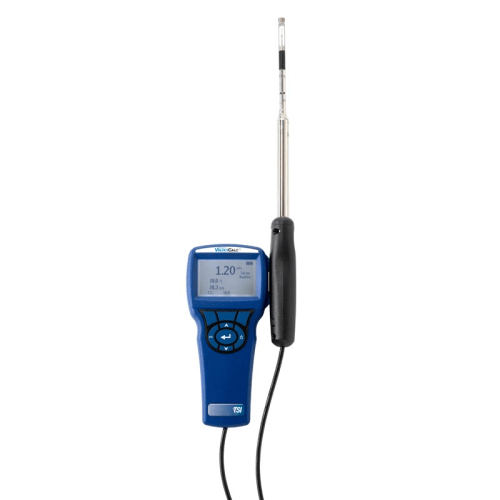

TSI 9545 Velocicalc Air Velocity and Humidity Meter and Data Logger
ORDER ME IN
Order Me In, once ordered this item will likely dispatch before the 06th of August 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
The TSI 9545 simultaneously measure air velocity, humidity and temperature and data log several ventilation parameters using a single probe with multiple sensors. Includes a 101.6 cm (40 inch) telescoping probe for difficult to reach measurements.
Regular price
$2,765.00 AUD
+ GST
$3,041.50 AUD Inc. GST
$3,041.50 AUD Inc. GST
Features
- Accurate air velocity and humidity measurement
- Simultaneously measure temperature, velocity and humidity
- Displays up to three measurements simultaneously
- Calculates volumetric flow and actual/standard velocity
- Data log 12,700+ samples and 100 test IDs
- LogDat2 downloading software included
- Simple to operate
- Kit includes Instrument, hard carrying case, 4 alkaline batteries, operation and service manual and calibration certificate
Specifications
Air velocity
- Range: 0 to 30 m/s (0 to 6,000 ft/min)
- Accuracy: +/- 3% of reading or +/- 0.015 m/s(+/- 3 ft/min), whichever is greater. Starts at 0.15 m/s through 20 m/s.
- Resolution: 0.01 m/s (1 ft/min)
Volumetric Flow Rate
- Range: Actual range is a function of velocity and duct size
- Duct size: 1 to 250 inches in increments of 0.1 in. (1 to 635 cm in increments of 0.1 cm)
Humidity
- Range: 5 to 95%RH
- Accuracy: +/-3% RH
- Range: 0.1% RH
Temperature
- Range: -18 to 93 C (0 to 200 F)
- Accuracy: +/- 0.5 F (+/- 0.3 C)
- Resolution: 0.1 C (0.1 F)
Instrument temperature range
- Operating (Electronics): 5 to 45 C (40 to 113 F)
- Operating (Probe): -10 to 60 C (14 to 140 F)
- Storage: -20 to 60 C (-4 to 140 F)
Data Logging
- Storage: 12,700+ samples and 100 test IDs
- Interval: 1 second to 1 hour
- Time constant: User selectable
Probe Dimensions
- Probe length: 101.6 cm (40 in)
- Probe diameter of tip: 7 mm (0.28 in)
- Probe diameter of base: 13 mm (0.51 in)
External meter dimensions
- 8.4 cm x 17.8 cm x 4.4 cm (3.3 in. x 7.0 in. x 1.8 in
- Shipping weight: 1.8 kg
Warranty:
- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
