TSI | See more Environment Meters | See more Anemometers and Wind Meters

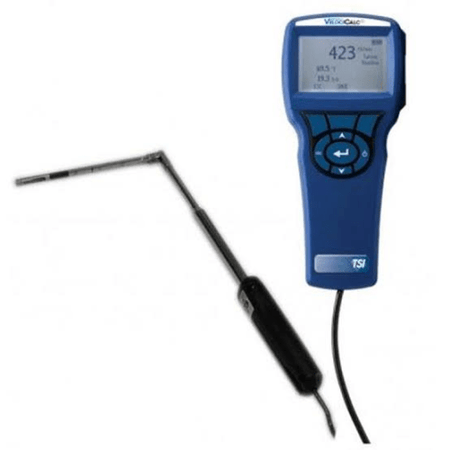

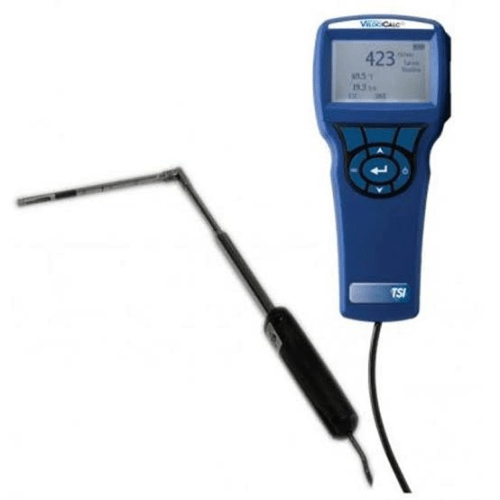

TSI 9535-A Velocicalc Air Velocity Meter Data Logger with Articulated Probe

ORDER ME IN
Product code: IC-9535-A

Order Me In, once ordered this item will likely dispatch before the 06th of August 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The TSI 9535-A simultaneously measure air velocity and temperature and data log several ventilation parameters using a single probe with multiple sensors. Includes a 101.6 cm (40 inch) articulated probe for difficult to reach measurements.

Read more | Need help? 3 Hour Business Reply

$2,401.00 AUD + GST
 $2,641.10 AUD Inc. GST

Features

- Accurate air velocity measurement
- Simultaneously measure temperature and velocity
- Displays up to three measurements simultaneously
- Calculates volumetric flow and actual/standard velocity
- Data log 12,700+ samples and 100 test IDs
- LogDat2 downloading software included
- Simple to operate
- Kit includes Instrument, hard carrying case, 4 alkaline batteries, operation and service manual and calibration certificate

Specifications

Air velocity

- Range: 0 to 30 m/s (0 to 6,000 ft/min)
- Accuracy: +/- 3% of reading or +/- 0.015 m/s(+/- 3 ft/min), whichever is greater. Starts at 0.15 m/s through 20 m/s.
- Resolution: 0.01 m/s (1 ft/min)

Volumetric Flow Rate

- Range: Actual range is a function of velocity and duct size
- Duct size: 1 to 250 inches in increments of 0.1 in. (1 to 635 cm in increments of 0.1 cm)

Temperature

- Range: -18 to 93 C (0 to 200 F)
- Accuracy: +/- 0.5 F (+/- 0.3 C)
- Resolution: 0.1 C (0.1 F)

Instrument temperature range

- Operating (Electronics): 5 to 45 C (40 to 113 F)
- Operating (Probe): -18 to 93 C (0 to 200 F)
- Storage: -20 to 60 C (-4 to 140 F)

Data Logging

- Storage: 12,700+ samples and 100 test IDs
- Interval: 1 second to 1 hour
- Time constant: User selectable

Articulating Probe Dimensions

- Articulating Section Length: 19.7 cm (7.8 in)
- Diameter of Articulating Knuckle: 9.5 mm (0.38 in)

External meter dimensions

- 8.4 cm x 17.8 cm x 4.4 cm (3.3 in. x 7.0 in. x 1.8 in
- Shipping weight: 1.8 kg
Warranty


- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
