TSI | See more Environment Meters | See more Dust Meters

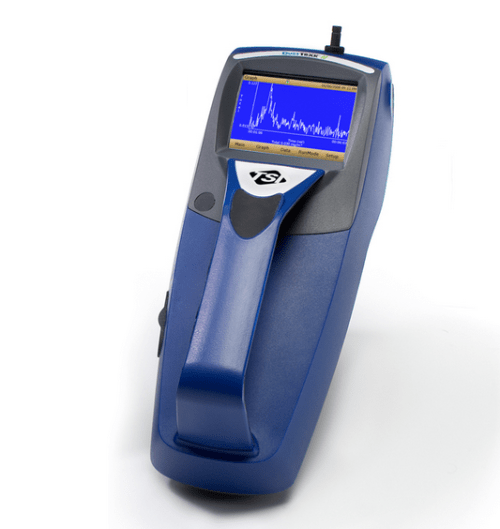

TSI 8532 DustTrak II Handheld Aerosol Monitor

ORDER ME IN
Product code: IC-8532
The handheld aerosol monitor is a battery-operated photometer that provides real-time aerosol mass readings. It is ideal for clean office settings, general industry, construction, environmental and outdoor applications.

Read more

Features:

- Measure aerosol concentrations corresponding to PM1, PM2.5, respirable, or PM10 size fractions
- Lightweight and portable
- Manual and programmable data logging functions
- Single point data logging capability
- Handheld unit
- Aerosol concentration range 0.001 to 150 milligram per cubic meter

Applications:

- Industrial/occupational hygiene surveys
- Indoor air quality investigations
- Point source location monitoring
- Baseline trending and screening
- Engineering control evaluations



Specifications

:

- Sensor type: 90 degrees light scattering
- Particle Size Range: 0.1 to 10 um
- Aerosol Concentration Range: 0.001 to 150 milligram per cubic meter
- Resolution: +/- 0.1% of reading or 0.001 milligram per cubic meter, whichever is greater
- Zero Stability: +/- 0.002 milligram per cubic meter per 24 hours at 10 sec time constant
- Flow Rate: 3.0 L/min set at factory, 1.40 to 3.0 L/min, user adjustable
- Flow Accuracy: +/- 5% of factory set point, internal flow controlled
- Temperature Coefficient: +0.001 milligram per cubic meter per C
- Operational Temp: 0 to 50 C
- Storage Temp: -20 to 60 C
- Operational Humidity: 0 to 95% RH, non-condensing
- Time Constant: User adjustable, 1 to 60 seconds
- Data Logging: 5 MB of on-board memory (>60,000 data points)45 days at 1 minute logging interval
- Log Interval: User adjustable, 1 second to 1 hour

Includes:

- Carrying case
- Rechargeable 3600 mAH Li-Ion Battery
- Switching Power Supply with Universal Line Cords
- TrakPro Data Analysis Software CD
- Zero filter
- USB (device and host) computer cables
- Inlet cap (x2)
- 10-mm nylon Dorr-Oliver Cyclone
- Impactor kit (with PM1, PM2.5, PM4, PM10 impactors, impactor plates (x2), and impactor oil)
- Sample extension tube (3-ft/1-m)
- Sheath air HEPA filters (x8)
- Filter removal tool
- Screwdriver
- Operation service manual
- Calibration certificate

Warranty

- 2 Years Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
