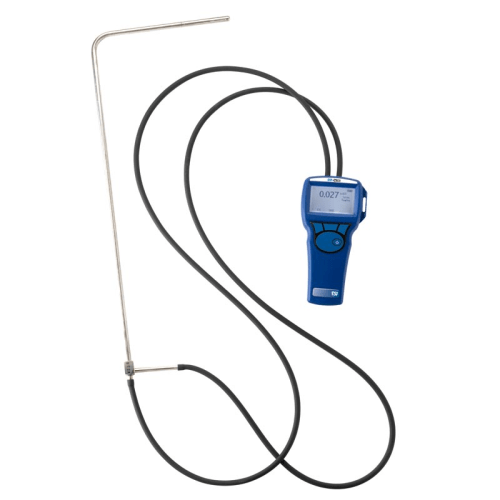

The 5825 DP-Calc is a digital micromanometer with data logger for HVAC monitoring, accurately measuring differential and static pressure. Includes one TSI 5815 meter, hard carrying case, 4 alkaline batteries, 2.5 meter rubber tube, static pressure tip, LogDat2 software, USB cable, operation and service manual and calibration certificate.
Regular price
$1,807.00 AUD
+ GST
$1,987.70 AUD Inc. GST
$1,987.70 AUD Inc. GST
Features
- Measure differential and static pressure from -15 to +15 in. H2O (-3735 to +3735 Pa)
- Calculate and display velocity when using a Pitot tube
- Calculates flow
- Variable time constant
- Statistics
- Data logging with time and date stamp
- Stores 12,700+ samples and 100 test IDs
- Includes LogDat2 downloading software
- Programmable K factors
Applications
- HVAC commissioning and troubleshooting
- Testing and balancing
- Pitot tube duct traverses
- Static pressure measurements
- Pressure drop across filters, coils, fans, and diffusers
- Environmental air flow testing
Specifications
Static/Differential Pressure
- Range: -15 to +15 in. H2O (-28.0 to +28.0 mm Hg, -3735 to +3735 Pa)
- Accuracy: +/- 1% of reading +/- 0.005 in. H2O (+/- 0.01 mm Hg, +/- 1 Pa)
- Resolution: 0.001 in. H2O (0.1 Pa, 0.01 mm Hg)
Velocity (Pilot Tube)
- Range: 1.27 to 78.7 m/s (250 to 15,500 ft/min)
- Accuracy: 10.16 m/s (+/- 1.5% at 2,000 ft/min)
- Resolution: 0.1 m/s (1 ft/min)
Duct size
- 2.5 to 1270 cm in increments of 0.1 cm (1 to 500 inches in increments of 0.1 in.)
Volumetric Flow Rate
- Range: Actual range is a function of velocity, pressure, duct size, and K factor
Data logging
- Storage: 12,700+ samples and 100 test IDs
- Logging Interval: 1 second to 1 hour
- Time Constant: User selectable
Instrument temperature range
- Operating: 5 to 45 C (40 to 113 F)
- Storage: -20 to 60 C (-4 to 140 F)
Warranty
- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
