TSI 5725 VelociCalc Rotating Vane Anemometer - IC-5725

ORDER ME IN
Product code: IC-5725

Order Me In, once ordered this item will likely dispatch before the 02nd of August 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The 5725 VelociCalc accurately measures air velocity and temperature, calculates flow rate, performs averaging, and can determine minimum and maximum readings. Using sweep mode you can quickly provide one averaged reading of velocity or volume over a large measurement area. The large vane head automatically averages velocity and volume readings.

Read more | Need help? 3 Hour Business Reply

$1,736.00 AUD + GST
 $1,909.60 AUD Inc. GST

It accurately measures air velocity and temperature, calculates flow rate, performs averaging, and can determine minimum and maximum readings. Using sweep mode you can quickly provide one averaged reading of velocity or volume over a large measurement area. The large vane head automatically averages velocity and volume readings. The VelociCalc 5725 includes variable time constant, sampling and statistics functions and data logging capability.

Applications

- Heating and cooling coil analysis
- Diffuser and grille measurements
- Fume hood face velocity tests
- Indoor air quality tests
- Filter face velocity measurements

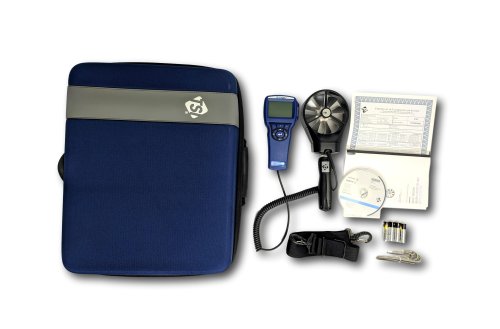

Included Items

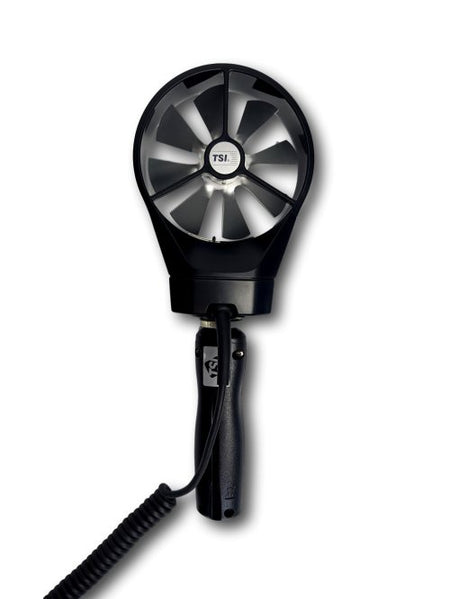

- Instrument with 100-mm vane
- Carrying case
- Alkaline batteries
- Operation and service manual
- USB cable
- Calibration certificate

Specifications


Air velocity

- Range: 0.25 to 30 m/s (50 to 6,000 ft/min)
- Accuracy: +/- 1.0% of reading

Duct size

- Range: 0 to 46.45 m2 (0 to 500 ft2)

Volumetric Flow Rate

- Range: Actual range is a function of velocity and duct area

Temperature

- Range: 5 to 45 C (40 to 113 F)
- Accuracy: 1 C (2 F)
- Resolution: 0.1 C (0.1 F)

Data logging

- Storage: 12,700+ samples and 100 test IDs
- Interval: 1 second to 1 hour
- Time constant: User selectable

Other specifications

- Power: Four AA-size batteries or optional AC adapter
- Dimensions: 8.4 cm x 17.8 cm x 4.4 cm (3.3 in. x 7.0 in. x 1.8 in)

Warranty

- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
