RA0711 LoRaWAN Wireless Liquid Level Sensor

ORDER ME IN
Product code: IC-RA0711

Backorder Now, once ordered your item will dispatch before the 31st of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

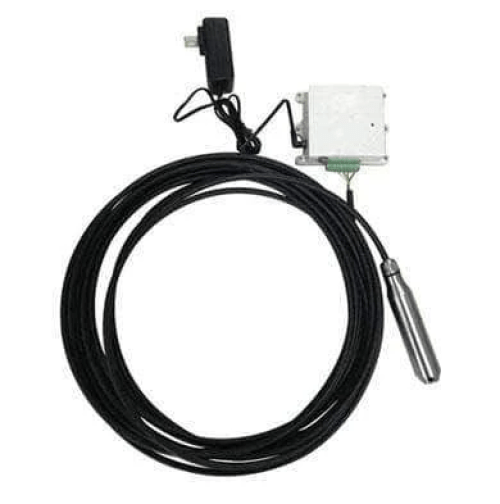

The RA0711 is a wireless communication device that detects the depth of liquid. RA0711 detects the depth of liquid in the container. The wireless liquid level sensor uses a solid state, continuous (multilevel) fluid level sensor for measuring levels in water, non-corrosive water-based liquids and dry fluids (powders). The communication is fully compatible with LoRaWAN? Protocol (Class A).

Read more

$587.00 AUD + GST
 $645.70 AUD Inc. GST

The RA0711 is a wireless communication device that detects the depth of liquid. RA0711 detects the depth of liquid in the container.

The wireless liquid level sensor uses a solid state, continuous (multilevel) fluid level sensor for measuring levels in water, non-corrosive water-based liquids and dry fluids (powders). The communication is fully compatible with LoRaWAN Protocol (Class A).
Features:
- Wireless Range of 10 Km
- LoRaWAN Class A Compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved Interference Immunity
- Improved Power Management For Longer Battery Life
- Encrypt-RF Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
- Battery Life: 2-5 Years at these conditions: Ambient Temperature 25 C, 20 Triggers/Day, Txpower = 20dBm, LoRa Spreading Factor SF = 10)
- Over-The-Air Updates
- Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
- Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne

Specifications

- Frequency Range: AU915MHz?923MHz
- TX Power: 19dBm?Typical?
- Rx Sensitivity: -121dBm (Frequency Deviation=5kHz,Bit Rate=1.2kb/S)
- Build-In Antenna: Yes
- Communication Range: 2km?Typical Output Power?
- Data Transfer Rate: 1.2 to 50kbps
- Spread Technique: FSK/OOK
- Water Level Sensor Measurement Range: 0-50m ?Optional?
- Water Level Sensor Accuracy: 0.25 %FS
- Frequency Range: AU915MHz?923MHz
- TX Power: 19dBm?Typical?
- Rx Sensitivity: -121dBm (Frequency Deviation=5kHz,Bit Rate=1.2kb/S)
- Build-In Antenna: Build-In Antenna
- Communication Range: 2km?Typical Output Power?
- Data Transfer Rate: 1.2?50kbps
- Spread Technique: FSK/OOK
- Dimensions (LxWxH): 111 x 86 x 41 mm

Warranty

- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
