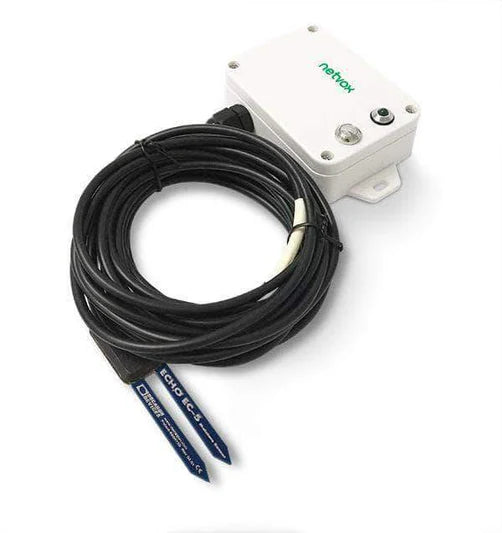

R718PB13 LoRaWAN Wireless Soil Moisture Sensor

ORDER ME IN
Product code: IC-R718PB13

Backorder Now, once ordered your item will dispatch before the 31st of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The Netvox R718PB13 device is a wireless communication device that detects the moisture content of the soil. R718PB13 can detect the moisture content of the soil and transmit the detected data to other devices through the wireless network. R718PB13 uses the SX1276 LoRaWAN wireless communication method. The device is compatible with the LoRaWAN protocol (Class A).

Read more

$788.00 AUD + GST
 $866.80 AUD Inc. GST

The Netvox R718PB13 device is a wireless communication device that detects the moisture content of the soil. R718PB13 can detect the moisture content of the soil and transmit the detected data to other devices through the wireless network. R718PB13 uses the SX1276 LoRaWAN wireless communication method. The device is compatible with the LoRaWAN protocol (Class A).

Features:
- LoRaWAN Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved Interference Immunity
- Improved Power Management For Longer Battery Life
- Encrypt-RF Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
- Battery Life: Please Refer To Web: httpp://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
- Over-The-Air Updates
- Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
- Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects

Specifications

- Frequency Range: AU915-928?AS923
- TX Power: 19dBm +/- 1dBm
- Rx Sensitivity: -136dBm (LoRa?Spreading Factor=12?Bit Rate=293bps ); -121dBm (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)
- Antenna Type: Build-In Antenna
- Communication Range: Up To 10 Km, The Actual Transmission Distance Depends On The Environment.
- Data Transfer Rate: 0.3kbps to 50kbps
- Spread Technique: LoRa/FSK
- Available Frequency: AU915-928, AS923
- Power Supply: 2 Sections Of ER14505 Battery AA SIZE (3.6V / Section) Parallel Power Supply
- Operating Current: Battery Life Is About 3.4 Years (Condition: Ambient Temperature 25 ? C, Report Once Every 15 Mins, Txpower = 20 DBm, LoRa Spread Factor SF = 10)
- Sleeping Current: 38uA
- Wake Up Current: 6.3mA at 3.3V
- TX Current: 120mA at 3.3V
- RX Current: 11mA at 3.3V
- Battery Measurement Accuracy: +/- 0.1V
- Ambient Temperature Range: -20 C To 55 C
- Ambient Humidity Range: <90% RH (Non-Condensing)
- Storage Temperature Range: -40 C To 85 C

Warranty

- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
