Netvox | See more IOT

R718N315 LoRaWAN Wireless 3-Phase Current Meter with 3 X 150A Clamp-on CT

ORDER ME IN
Product code: IC-R718N315

Order Me In, Once ordered this item will likely dispatch before the 14th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The NETVOX wireless three-phase current detector is used to detect three-phase electrical input current. The device is compatible with the LoRaWAN protocol, and integrates a chip module that conforms to the LoRaWAN wireless protocol, and joins the gateway to display the collected data in the gateway.

Read more

$411.00 AUD + GST
 $452.10 AUD Inc. GST

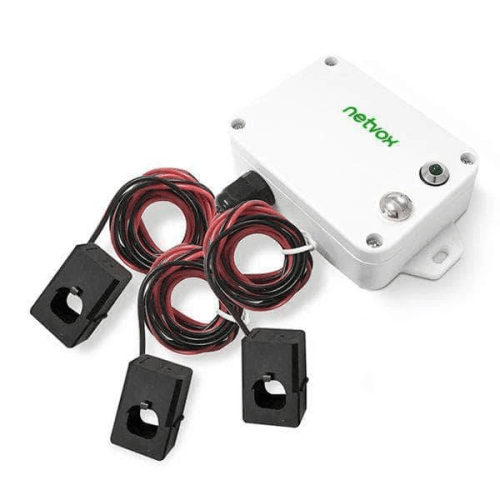

The NETVOX wireless three-phase current detector is used to detect three-phase electrical input current. The device is compatible with the LoRaWAN protocol, and integrates a chip module that conforms to the LoRaWAN wireless protocol, and joins the gateway to display the collected data in the gateway.

The device is powered by a battery and receives AC current through a current transformer. This device adopts open-loop current transformer, which can be easily connected to the device to be tested. The A phase line, the B phase line and the C phase line of the three-phase electric power are respectively connected to the corresponding current transformers.
The communication is fully compatible with LoRaWAN Protocol (Class A).
Features:
- Wireless Range of 10 Km
- LoRaWAN Class A Compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved Interference Immunity
- Improved Power Management For Longer Battery Life
- Encrypt-RF Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
- Battery Life: 2 ? 5 Years (Conditions: Ambient Temperature 25 C, 20 Triggers/Day, Txpower = 20dBm, LoRa Spreading Factor SF = 10)
- Over-The-Air Updates
- Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
- Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne

Specifications

Electric:
- Input Power: 2 X 3.6V ER14505 AA Lithium Batteries (3.6V, 2400mah/Section)
- Sleeping Current: 25uA
- Wake Up Current: 7mA
- Receiving Current (Max): 11mA at 3.3V
- Transmitting Current (Max): 127mA at 3.3V
- Battery Voltage Measurement Accuracy: +/- 0.1V
- Current Measurement Accuracy: less than +/- 1%
- Current Measurement Accuracy Range: 1A To 150A (Depending On The Current Transformer Configuration)
Frequency:
- TX Power: 19dBm +/- 1dBm
- Rx Sensitivity: -136dBm (LoRa?Spreading Factor=12, Bit Rate=293bps); -121dBm (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)
- Antenna Type: Build-In Antenna
- Communication Range: Up To10 Km, The Actual Transmission Distance Depends On The Environment.
- Data Transfer Rate: 0.3kbps to 50kbps
- Spread Technique: LoRa/FSK
- Available Frequency: AU915 MHz
Physical:
- Dimension (Main Part, LxWxH): 112 x 65 x 32 mm
- Weight: 141g
- Environment Temperature Range: -20 to 55 C
- Environment Humidity Range: <90% RH (No Condensation)
- Storage Temperature: -40 to +85 C

Warranty

- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
