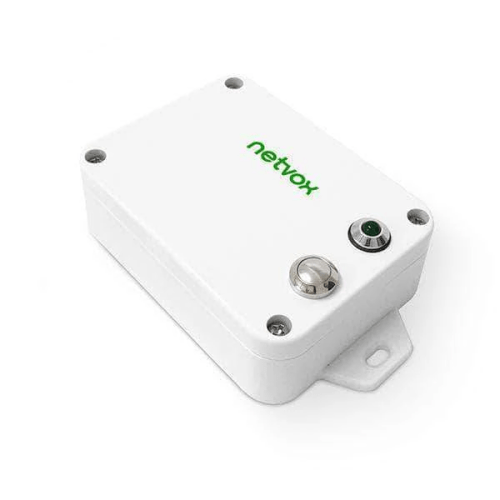

R718MA LoRaWAN Wireless Asset Tracking Sensor

ORDER ME IN
Product code: IC-R718MA

Order Me In, Once ordered this item will likely dispatch before the 14th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

R718MA has a simple positioning function. The device reports its RSSI, SNR information periodically to the gateway. it can be attached to an object, and it sends an alert when it is removed from the premises. The communication is fully compatible with LoRaWAN Protocol (Class A).

Read more

$187.00 AUD + GST
 $205.70 AUD Inc. GST

R718MA has a simple positioning function. The device reports its RSSI, SNR information periodically to the gateway. it can be attached to an object, and it sends an alert when it is removed from the premises. The communication is fully compatible with LoRaWAN Protocol (Class A).

Features:
- Wireless Range Of 10 Km
- LoRaWAN Class A Compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved Interference Immunity
- Improved Power Management For Longer Battery Life
- Encrypt-RF Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
- Battery Life: 2 to ? 5 Years (Conditions: Ambient Temperature 25 ?C, 20 Triggers/Day, Txpower = 20dBm, LoRa Spreading Factor SF = 10)
- Over-The-Air Updates
- Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
- Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne

Specifications

Electric:
- Input Power: 2 X 3.6V ER14505 AA Lithium Batteries (3.6V 2400mah/Section)
- Sleeping Mode: 22 UA
- Wake Up Mode: 6.3mA at 3.3V
- Receiving Current (Max): 11mA at 3.3V
- Transmitting Current (Max): 120mA/3.3V
- Battery Voltage Measurement Accuracy: +/- 0.1V
- Low Voltage Threshold: 3.2V
Frequency:
- TX Power: 19dBm +/- 1dBm
- Rx Sensitivity: -136dBm (LoRa?Spreading Factor=12, Bit Rate=293bps); -121dBm (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)
- Antenna Type: Build-In Antenna
- Communication Range: 10 Km (Line-Of-Sight, The Actual Transmission Distance Depends On The Environment)
- Data Transfer Rate: 0.3kbps to 50kbps
- Spread Technique: LoRa/FSK
- Available Frequency: AU915-928?AS923
Physical:
- Dimension (Main part, LxWxH): 112mm x 65mm x 32mm
- Weight: 141g
- Environment Temperature Range: -20 to 55 C
- Environment Humidity Range: <90% RH (No Condensation)
- Storage Temperature: -40 to 85 C
- IP Rating (Main Part): IP67
- IP Rating (External Sensor): IP67

Warranty

- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
