Hand-Held Digital Torque Meter (100 lbFin / 1150 kgFmm / 1150 Ncm)

ORDER ME IN
Product code: IC-MTT03C-100

Order Me In, Once ordered this item will likely dispatch before the 13th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

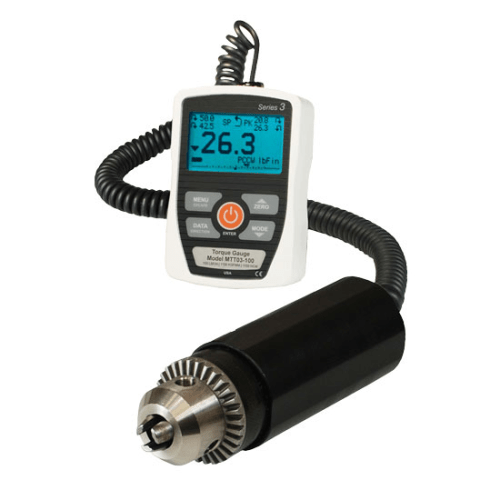

The IC-MTT03C-100 is a digital cap torque gauge designed for clockwise and counter-clockwise torque testing. Built with a dedicated remote torque sensor with Jacobs chuck that can be used to grip a sample, bit, or fixture and a aluminum housing for hand-held use or test stand mounting for more sophisticated testing requirements.

Read more

$2,870.83 AUD + GST
 $3,157.92 AUD Inc. GST

The IC-MTT03C-100 is a digital cap torque gauge designed for clockwise and counter-clockwise torque testing. Built with a dedicated remote torque sensor with Jacobs chuck that can be used to grip a sample, bit, or fixture and a aluminum housing for hand-held use or test stand mounting for more sophisticated testing requirements.

The TT03 series features a sampling rate of 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges? features and configurable parameters. USB output is provided for data collection purposes.
Set point indicators are provided for pass-fail testing. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.
The gauges include MESUR Lite data acquisition software. MESUR Lite tabulates single point data. One-click export to Excel allows for further data manipulation.
Features:
- Peak memory for clockwise and counter clockwise readings saved and displayed
- High-speed 2,000 Hz sampling rate
- Single Reading USB data output
- Programmable set points with pass/fail indicators
- Battery or AC operation
- Configurable audio alarms and key tones
- Live load bar graphs with set point markers
- CE mark
- Comes in a complete kit that includes a force display with torque sensor, G1053 cap grip, universal AC adapter, battery, chuck key, quick-start guide, USB cable, basic data xfer software and NIST traceable calibration cert if a fitted carrying case.

Specifications

- Measurement ranges: 100 lbFin / 1150 kgFmm / 1150 Ncm
- Accuracy: +/- 0.5% of Full Scale
- Sampling rate: 2,000 Hz
- Power: AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
- Battery Life:Backlight on: up to 7 hours of continuous use
- Backlight off: up to 24 hours of continuous use
- Measurement units: lbFin, ozFin, kgFmm, Ncm (depending on model)
- USB Output: Individual data point output by pressing DATA key. Configurable up to 115,200 baud.
- Configurable Settings:Digital filters, USB output settings, backlight, automatic shutoff, key tones, audio alarms, default settings, calibration
- Safe overload:: 150% of full scale (display shows "OVER" at 110% and above)
- Weight: 0.8 kilos
- Environmental requirements: 5 to 45 C (40 to 100 F), <96% humidity (non-condensating)

Warranty:

- 3 Years Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
