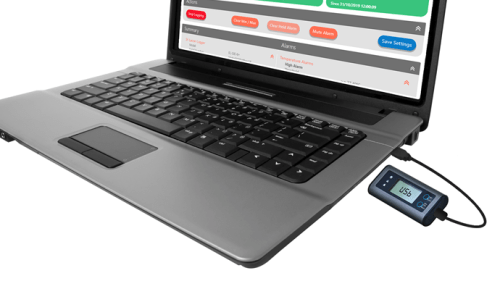

Monitor the environment you live and work in with the EasyLog EL-SIE-6+. Advanced onboard software means there is nothing to install on your PC or Mac simply connect the logger with a USB cable and use your web browser to configure the device and view, analyse and download your data. It really couldnt be easier.
The logging interval can be set between 10 seconds and 24 hours, with immediate, delayed, triggered or push-to-start logging. Alarms are fully user
configurable, with functionality including cumulative alarms, pre-alarms, a delay before alarm triggering, and an alarm hold option, which continues
showing the alarm condition even if the reading returns to an acceptable level.

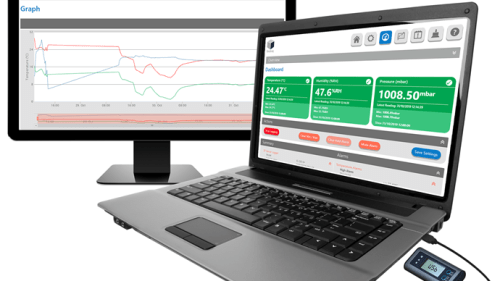

The display shows current, maximum and minimum readings, and three coloured LEDs indicate device status at a glance. Once logging is complete, re-connect
to your computer and use your browser to view, analyse and save your data. You can also choose to upload your data to an Easy Log Cloud account,
making the data accessible online for powerful graphing, analysis and report generation.
Typical battery life is over 1 year using standard AAA alkaline batteries, and a wall mounting bracket is supplied with the device.
Features:
- Easy to use
- No software to install
- Configure using your normal web browser, no internet connection needed includes a pre-programmed Quick Start option
- Use with PC or MAC
- Powerful Graphing and data for report generation
- -18 to +55 C (-0.4 to +131 F) temperature measurement range
- 0 to 100%RH humidity measurement range
- 300 to 1200 mbar pressure measurement range
- Stores up to 750,000 readings

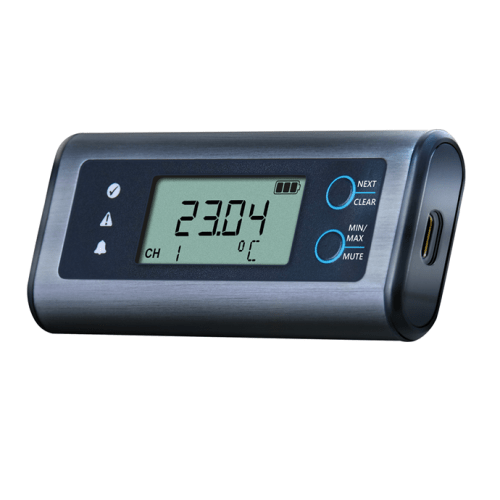

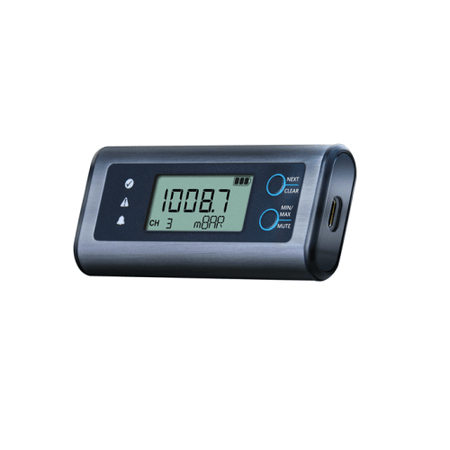

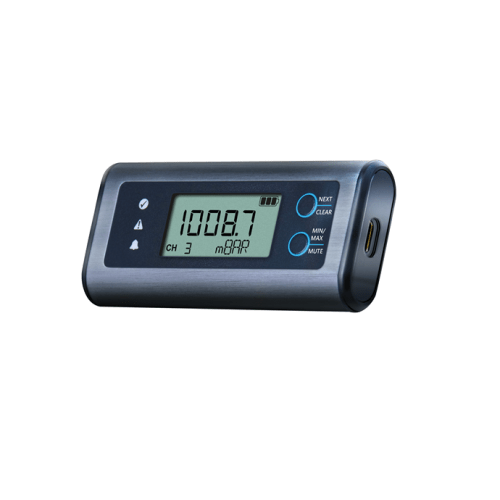

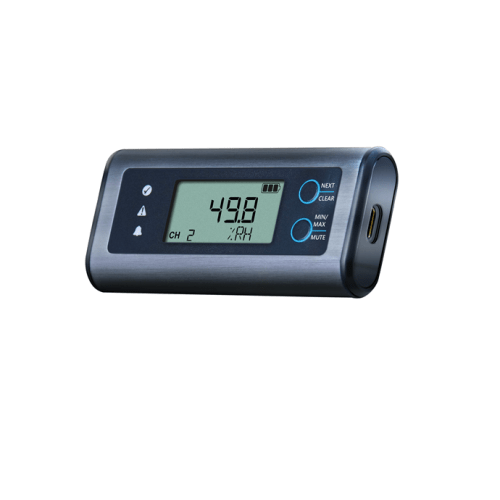

- Display shows current, maximum and minimum readings
- Status and alarm indicators
- On-board alarm sounder
- Calibration Reminder (launch date TBC)
- Includes 2 AAA 1.5V Alkaline Batteries & Wall mounting bracket
- Data can be uploaded to the EasyLog Cloud (launch date TBC)
Specifications
Temperature:
- Measurement Range: -18 to +55 C (-0.4 to +131 F)
- Resolution: 0.01
- Accuracy: +/- 0.2 C (+/- 0.36 F)
Humidity:
- Measurement Range: 0 to 100%RH
- Resolution: 0.1%
- Accuracy: +/- 1.5% typical (0 to 80%RH)
Pressure:
- Measurement Range: 300 to 1200 mbar
- Resolution (Data): 0.01 mbar
- Resolution (Display): 0.1 mbar
- Accuracy: +/- 1mbar
Data Logger:
- Logging Rate: 10 seconds to 24 hours, user selectable
- Start Modes: Immediate, push-to-start, delayed start, parameter triggered
- Memory Capacity: 1,000,000 total readings, >500,000 readings per channel
- Sounder: Integrated alarm sounder
- Power Source: 2 x AAA 1.5V battery
- Battery Life: >1 year (at 25 C with 10 minute logging rate)
- Dimensions: 93 x 42 x 17 mm (excluding bracket)
- Operating Temperature Range: -18 to +55 C (-0.4 to +131 F)
- Environmental Rating: IP4X
Warranty
- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
