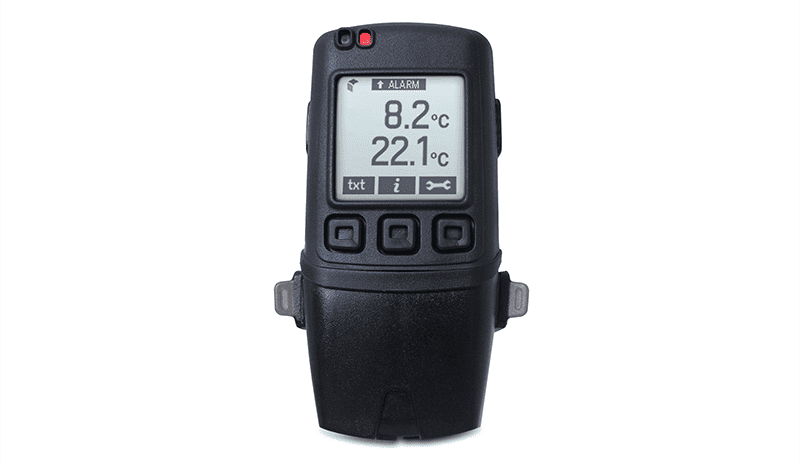

Dual Thermocouple Data Logger, Graphic LCD, USB - EL-GFX-DTC
Backorder Now, once ordered your item will dispatch before the 12th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$367.40 AUD Inc. GST
The EL-GFX-DTC standalone USB data logger measures and stores over 250,000 temperature readings from two J, K, or T-type thermocouple inputs
at a resolution of 0.1C. Initial configuration of the data logger is done with Lascar's EL-WIN-USB software running on Windows, compatible
with 32-bit and 64-bit versions of Windows 7, 8 and 10 (available as a free-download)

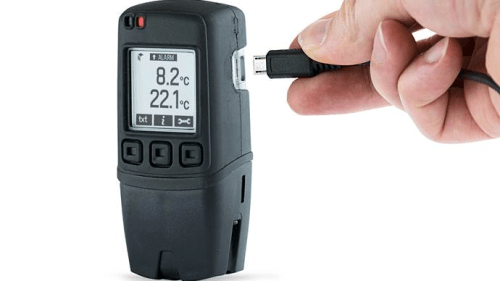

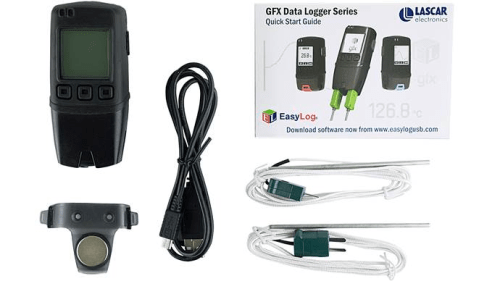

Users can quickly set up the data logger and view downloaded data by connecting the device to the PC's USB port using the supplied cable.

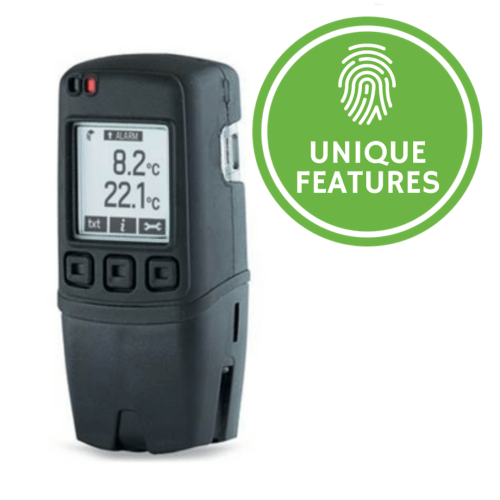

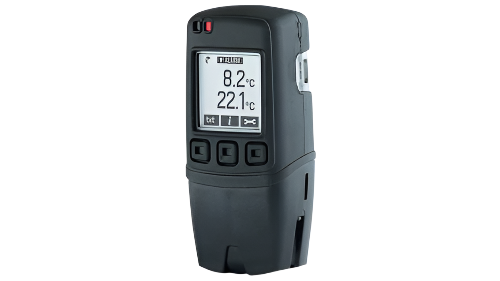

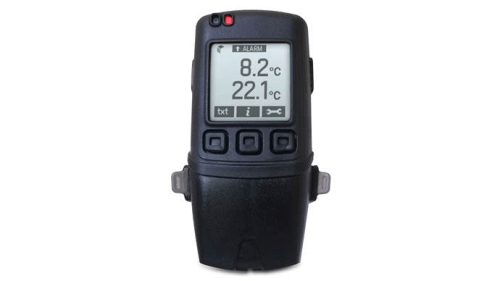

The data logger features a high-contrast graphic LCD and three-input buttons which allows users to start, stop and restart the data logger using on-screen menus. This menu also provides real-time analysis of data either as a data summary (showing highest & lowest readings and alarm conditions) or as a graph that updates as new data is added. Multiple data logging sessions can be stored on the device ready for upload to a PC at a later date. The two replaceable 1/2 AA batteries typically allow logging for up to one year.
As a recently introduced product, stock of this product may be limited. If your requirement is urgent please contact Lascar directly for
up to date lead-time information before ordering online.

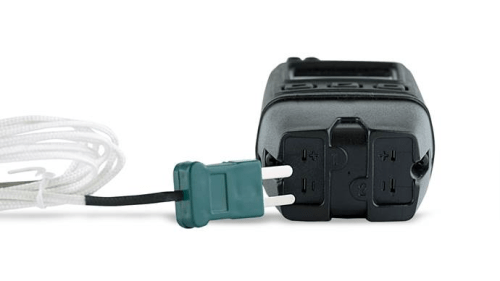

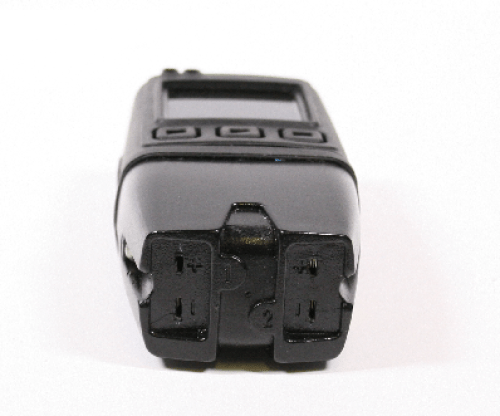

- Dual channel, compatible with K, J and T type Thermocouples
- Logging rates between 1 second and 1 hour
- Immediate, delayed, push-button or temperature triggered start mode
- Graphic LCD shows real-time readings, graph and current status
- Stores over 250,000 readings
|
   |
Specifications
:Probe Measurement Range |
K-Type: -200 - +1350 C J-Type: -200 - +1190 C TType: -200 - +390 C |
Internal Resolution |
0.1 C/0.2 F |
Logging Rate |
every 2s - every 1 hr |
Accuracy (logger error) |
+/- 1.5 C (+/- 2.7 F)
|
Operating Temperature Range |
-10 - +40 C / +14 - +104F (data logger only) |
Warranty:
1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
