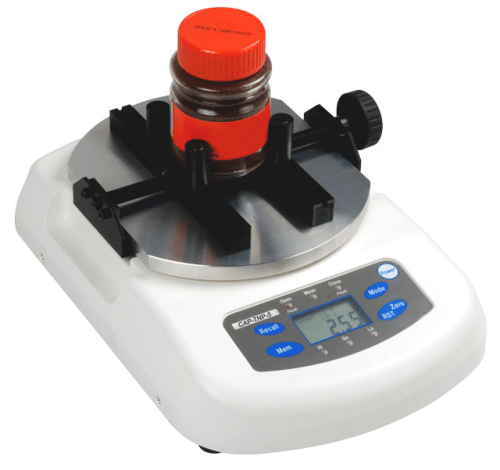

Cap Torque Tester 0-5099gcm/50 Ncm Capacity - IC-CAP-TNP-0.5
ORDER ME IN
Order Me In, once ordered this item will likely dispatch before the 19th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
The new CAP-TNP-0.5 torque meter is a precision instrument that measures OPEN and CLOSE torque values for various applications. As a cap torque analyzer, the CAP-TNP-0.5 repeatedly determines bottle closure and breakaway torque. It has a wide memory capacity capable of storing 1,000 data points in addition to Average, Maximum and Minimum values. A HI-LO comparator feature can be utilized for a large batch testing to ensure overall product quality.
Regular price
$3,068.75 AUD
+ GST
$3,375.63 AUD Inc. GST
$3,375.63 AUD Inc. GST
The new CAP-TNP-0.5 torque meter is a precision instrument that measures OPEN and CLOSE torque values for various applications. As a cap torque analyzer, the CAP-TNP-0.5 repeatedly determines bottle closure and breakaway torque. It has a wide memory capacity capable of storing 1,000 data points in addition to Average, Maximum and Minimum values. A HI-LO comparator feature can be utilized for a large batch testing to ensure overall product quality.
The CAP-TNP-0.5 torque meter is USB capable for computer testing. Combined with the free Digitorq Software, additional analysis and testing can be performed. It is a portable device powered with internal rechargeable batteries or through an AC Adapter/charger. Designed with a small footprint it can easily be transferred to maximize use around the shop floor or the laboratory.
The software is Windows 7 compatible and requires Microsoft Excel.
Features
- +/- 0.5% F.S. Accuracy
- Includes Hi/Go/Lo Limits and LED Indicators
- Displays Torque values in, lb-in, Kgcm and Nm, Ncm
- USB interface including FREE Digitorq Software
- Captures Peak Opening, Peak Closing and Average torque values (CCW, CW)
- Three (3) models offered covering small, medium and large sized containers
- One touch operation, retains up to 1000 measurements in memory
- Easy to read L.C.D.
- Rechargeable NIMH batteries and / or Universal AC adapter
- Small foot print, compact, space saver design
- Includes Traceable Calibration Certificate
- CE Certified
- 2 Years Warranty
Modes
- Open: Max value when opening [CCW torque direction]
- Close Mode: Max value when closing [CW torque direction]
- Average Mode: Continuous torque values in real time
Specifications
- Range: 0-4.425 Lbf-in/0-0.500 Nm/0-50.00 Ncm/0-5099 gcm
- Overload protection: 150%
- Sample Diameter Range (min to max): 10 - 190 mm (0.39" to 7.48")
- Overload display: Display "OVR" on LCD (blinking on/off)
- Main display: 4-digit LCD display Character height 12mm
- Sub display: 3-digit LCD display Character height 7mm
- Comparator display: Hi, GO, Lo LED Indicators
- Accuracy: +/- 0.5% full scale
- Open mode: Max vale when opening. Displays max counter clockwise torque.
- Close mode: Max value when closing. Displays max clockwise torque
- Average mode: Real time display. Displays max torque in real time
- Display Update Time: 1, 2, 4 or 8 updates/second, user-set
- Sampling Rate: 1000 times/second
- Memory data number: 1000 data points (max)
- Statistic process: Average value, max value and min value
- Data output: USB 1.1 / RS232
- PC software: Digitorque software
- Accessories: USB cable, AC adapter, 30mm chuck pin (4pcs), Manual
- Power: Built in Nickle hydride battery or Auto-ranging AC adapter (AC100 - 240V)
- Dimensions (L x W x H): 320 x 227 x 126mm (12.60" x 8.94" x 4.96")
- Weight: 8 kg (17.62 lbs) CAP-TNP-10: 12.5 kg (27.53 lbs)
- Operation Temperature: 0 - 40 C (32 - 104)
- Battery Life: 8 hours after full charge
- Battery Recharge Time: Max. 16 hours
- Battery Type: NiMH
- Warranty: 2 Years
Warranty:
- 2 Years Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
