Checkline | See more Torque Testers

Cap Torque Tester 0-20.00kgf-cm/ 200 Ncm Capacity - IC-CAP-DTXS-15

ORDER ME IN
Product code: IC-CAP-DTXS-15

Order Me In, Once ordered this item will likely dispatch before the 13th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

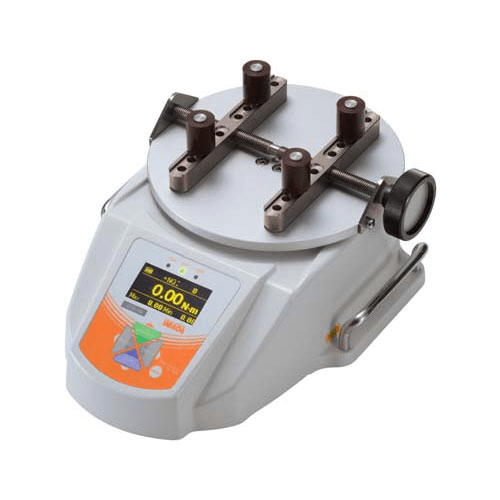

The CAP-DTXS-15 is an easy-to-use, high-precision cap torque tester that features a large electroluminescent display that clearly indicates the real-time and peak torque. Color-coded LED indicators alert the user to Go/NoGo conditions. Orange lights indicate a value less than low setpoint, green lights between high and low, and red for over the high.

Read more

$4,085.31 AUD + GST
 $4,493.85 AUD Inc. GST

The CAP-DTXS-15 is an easy-to-use, high-precision cap torque tester that features a large electroluminescent display that clearly indicates the real-time and peak torque. Color-coded LED indicators alert the user to Go/NoGo conditions. Orange lights indicate a value less than low setpoint, green lights between high and low, and red for over the high.

The CAP-DTXS-15 is also supplied with ZT?Logger data acquisition software. It can download data from the tester memory or captures continuous data at 10 points/second. Zero the tester or capture data while at the computer. All tester programming can be set and saved from the software.

Includes a 3 Point Calibration Certificate traceable to NIST, AC adapter/charger and built-in Ni-MH rechargeable batteries, and 1 inch high standard pegs.

Features

- Test cap loosening (CCW) and tightening (CW) torque
- Selectable real time and peak modes
- USB, RS-232, Digimatic and Analog outputs
- Selectable units of lbf-in, kgf-cm, N-m, ozf-in, N-cm
- 1000 data point memory capacity
- Programmable high/low setpoints with color-coded LED indicators and audible signal
- Overload and low battery indicators
- 200% overload capacity
- DTXS accommodates samples from 20 up to 160 mm (0.787" - 6.30")
- Four rubber-coated 1 inch pegs are included with DTXS
- Optional "Small Table" accommodates samples from 7 up to 50 mm (0.275" - 2")
- Optional Peg sizes/material available
- Include 3 Point Calibration Certificate traceable to NIST. ISO 17025 Calibration - Certification optionally available
- 2 Year Warranty

Specifications


- Range: 15.00 (0.01 lbf-in)/20.00 (0.01 kgf-cm)/200.0 (0.1 N-cm)/2.000 (0.001 Nm)/240.0 (0.1 ozf-in)
- Accuracy: +/- 0.5%F.S.,+/- 1 digit
- Unit of measurement: lbf-in, kgf-cm, N-m, ozf-in, N-cm
- Display: 4-digit
- Display update: 10 times/ sec
- Auto Zero Reset: 1.0 to 60 seconds (selectable)
- Sampling rate: 2,000 samples/second (max) thru the USB port
- Safe overload rating: Approx. 200%
- Operating Environment: Temperature: 0-40 C Humidity: 20 -80%RH
- Output: Outputs USB, RS-232C, Digimatic and +/- 2 VDC analog output (D/A),Comparator 3 steps (-NG/OK/+NG), Overload alarm
- Overload warning: Approx.110%F.S. (Warning message and alarm )
- Sensitivity: Max, High, Medium, Low (selectable)
- External connecting switch: SEND (a point of contact holding), Zero reset, Peak, ON/OFF setting
- Auto Power Off: 5, 10, minutes or OFF (selectable)
- Power: Built-In Rechargeable Ni-MH battery pack or via AC-Adapter (100-240V AC)
- Battery Life: approx. 8 hours (recharge time approx. 10 hours)
- Battery Indicator: Indicates three charge states high, medium and low
- Plug Type: USA Blade Type (Select Euro Plug Adapter for use in 230V Countries)
- Weight: Approx. 10 Lbs/4.5kg (Including Standard table and Standard pins)
- Warranty: 2-Years

Warranty:

- 2 Years Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
