Checkline

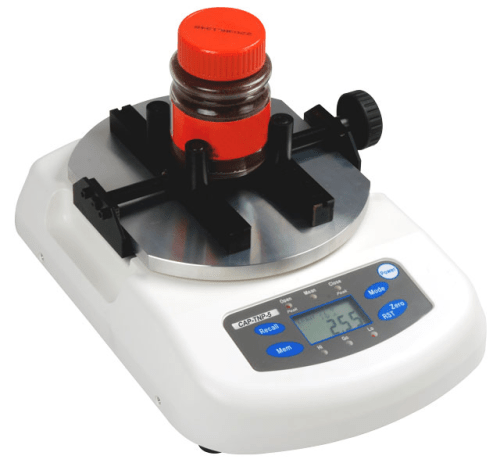

Cap Torque Tester 0-102.0Kgcm/10.00 Nm Capacity - IC-CAP-TNP-10

ORDER ME IN
Product code: IC-CAP-TNP-10

Order Me In, Once ordered this item will likely dispatch before the 13th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The new CAP-TNP-10 torque meter is a precision instrument that measures OPEN and CLOSE torque values for various applications. As a cap torque analyzer, the CAP-TNP-10 repeatedly determines bottle closure and breakaway torque. It has a wide memory capacity capable of storing 1,000 data points in addition to Average, Maximum and Minimum values. A HI-LO comparator feature can be utilized for a large batch testing to ensure overall product quality.

Read more

$3,068.75 AUD + GST
 $3,375.63 AUD Inc. GST

The new CAP-TNP-10 torque meter is a precision instrument that measures OPEN and CLOSE torque values for various applications. As a cap torque analyzer, the CAP-TNP-10 repeatedly determines bottle closure and breakaway torque. It has a wide memory capacity capable of storing 1,000 data points in addition to Average, Maximum and Minimum values. A HI-LO comparator feature can be utilized for a large batch testing to ensure overall product quality.

The CAP-TNP-10 torque meter is USB capable for computer testing. Combined with the free Digitorq Software, additional analysis and testing can be performed. It is a portable device powered with internal rechargeable batteries or through an AC Adapter/charger. Designed with a small footprint it can easily be transferred to maximize use around the shop floor or the laboratory.

The software is Windows 7 compatible and requires Microsoft Excel.

Features

- +/- 0.5% F.S. Accuracy
- Includes Hi/Go/Lo Limits and LED Indicators
- Displays Torque values in, lb-in, Kgcm and Nm, Ncm
- USB interface including FREE Digitorq Software
- Captures Peak Opening, Peak Closing and Average torque values (CCW, CW)
- One touch operation, retains up to 1000 measurements in memory
- Easy to read L.C.D.
- Rechargeable NIMH batteries and / or Universal AC adapter
- Small foot print, compact, space saver design
- Includes Traceable Calibration Certificate
- CE Certified
- 2 Years Warranty

Modes

- Open: Max value when opening [CCW torque direction]
- Close Mode: Max value when closing [CW torque direction]
- Average Mode: Continuous torque values in real time

Specifications


- Range: 0-88.5 Lbf-in/0-10.00 Nm/0-1000 Ncm/0-102.0 Kgcm
- Overload protection: 150%
- Sample Diameter Range (min to max): 10 - 190 mm (0.39" to 7.48")
- Overload display: Display "OVR" on LCD (blinking on/off)
- Main display: 4-digit LCD display Character height 12mm
- Sub display: 3-digit LCD display Character height 7mm
- Comparator display: Hi, GO, Lo LED Indicators
- Accuracy: +/- 0.5% full scale
- Open mode: Max vale when opening. Displays max counter clockwise torque.
- Close mode: Max value when closing. Displays max clockwise torque
- Average mode: Real time display. Displays max torque in real time
- Display Update Time: 1, 2, 4 or 8 updates/second, user-set
- Sampling Rate: 1000 times/second
- Memory data number: 1000 data points (max)
- Statistic process: Average value, max value and min value
- Data output: USB 1.1 / RS232
- PC software: Digitorque software
- Accessories: USB cable, AC adapter, 30mm chuck pin (4pcs), Manual
- Power: Built in nickle hydride battery or Auto-ranging AC adapter (AC100 - 240V)
- Dimensions (L x W x H): 320 x 227 x 126mm (12.60" x 8.94" x 4.96")
- Weight: 8 kg (17.62 lbs) CAP-TNP-10: 12.5 kg (27.53 lbs)
- Operation Temperature: 0 - 40 C (32 - 104)
- Battery Life: 8 hours after full charge
- Battery Recharge Time: Max. 16 hours
- Battery Type: NiMH
- Warranty: 2 Years

Warranty:

- 2 Years Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
