Atlas Scientific PH Sensor Kit - IC-EZO-pH-Kit
Backorder Now, once ordered your item will dispatch before the 31st of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The Atlas Scientific PH Sensor Kit is a 6th generation embedded pH circuit that can be configured to meet, or exceed the accuracy and precision found in most benchtop laboratory grade pH meters. Works with any off-the-shelf pH probe/ sensor/electrode.
Regular price
$352.00 AUD
+ GST
$387.20 AUD Inc. GST
$387.20 AUD Inc. GST
Specifications
pH Circuit:
- Two data protocols
- UART asynchronous serial connectivity (RX/TX voltage swing 0-VCC)
- I2C (default I2C address 0x63)
- Compatible with any microprocessor that supports UART, or I2C protocol
- Operating voltage: 3.3V to 5V
- Works with any off-the-shelf pH probe
pH Probe:
- pH Range: 0-14 (Na+ error at >12.3 pH)
- Operating temperature: 1?C - 99?C
- Max Pressure: 690 kPa (100PSI)
- Max Depth 60 M (197 ft)
- Cable length: 1 Meter
- Weight: 49 grams
- Speed of response: 95% in 1 second
- Isopotential point: pH 7.00 (0 mV)
- Dimensions 12mm X 150mm (1/2" X 6")
- BNC connector

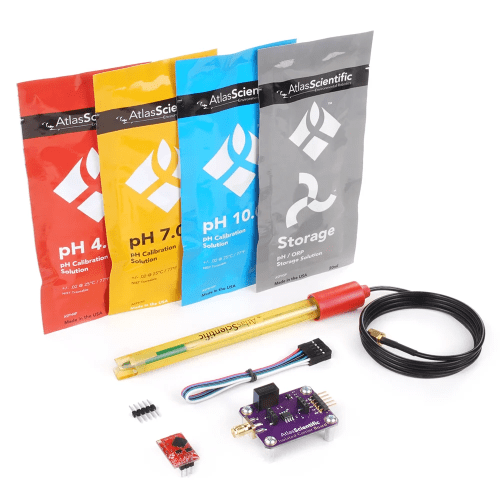

Included:

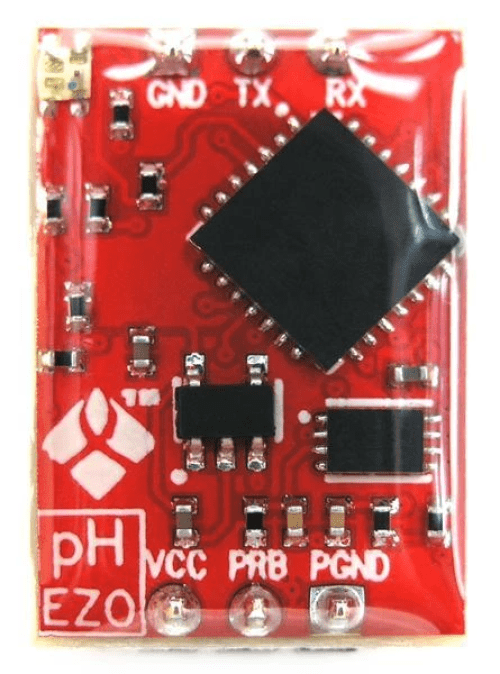

- 1x EZO pH Circuit

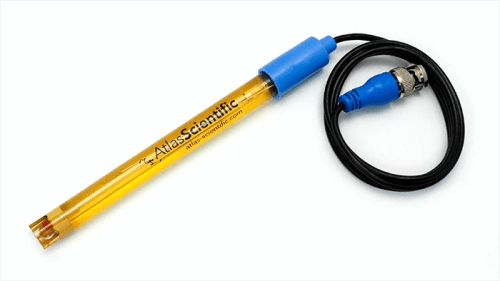

- 1x scientific grade silver/silver chloride pH Probe.
- 3x 125ml (4oz) calibration solutions (pH 4, pH 7 and pH 10)
- 1x 125ml (4oz) pH storage solution

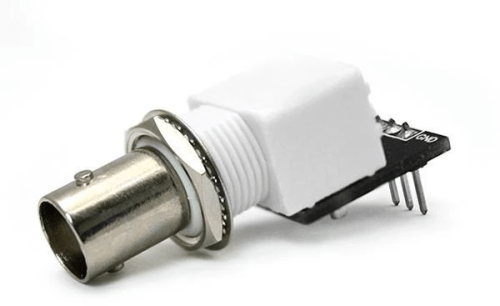

- 1x Pre-Assembled Female BNC connector
- 1x pH deca
Applications:
- Standard Lab use
- Field use
- Soil
- Low ionic and ultra-pure water
- High pH Solutions (up to 14pH)
- Samples containing Heavy metals
- Photography Development
- Beer, wine and other liquor
- Food Safe
Warranty
- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
