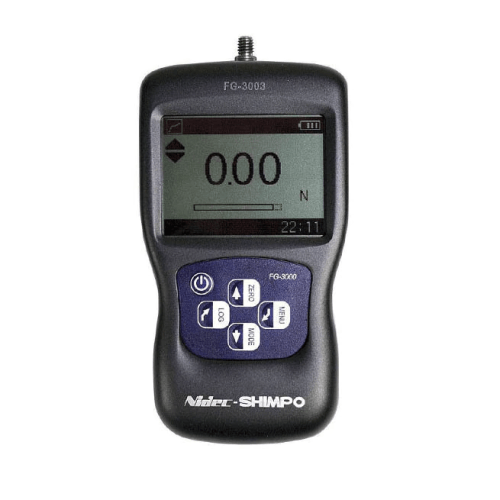

5 kg Compact Digital Force Gauge with Data Output - IC-FG-3005

ORDER ME IN
Product code: IC-FG-3005

Order Me In, Once ordered this item will likely dispatch before the 05th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

Compact digital force gauge for simple, economical tension and compression testing. With large backlit LCD screen and memory to log up to 500 readings with a push of a button. Capacity of 5 kg.

Read more

$727.08 AUD + GST
 $799.79 AUD Inc. GST

The new FG-3005 Series digital force gauge is the choice for simple, economical tension and compression testing. Combining a compact housing, yet maintaining a large back- lit LCD screen, it is designed to fit snug in the hand for ease of use. The multi-language FG-3005 provide menu programming for intuitive set-up of the instrument to your desired requirements.

Three modes of operation are available: Track mode displays live readings, Peak mode records the maximum values sensed during testing, and Pre-set mode, which activates user defined high and low limit set points. The programmable limits provide a fast visual and audible alert if a test passes or fails. Additionally, a comparator output enables integration of the instrument into your quality system for repetitive testing, for example production lines.
Features:
- 1000 Hz Sample Rate combined with +/-0.3% F.S. accuracy provides fast sampling producing great resolution and more accurate results
- Three mode operation: Track, Peak & Preset Limits
- 180 degrees reversible display, tension/compression icons, and vertical printed keypad allows usage as a portable gauge or mounted upside down on a test stand
- Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing in Preset mode
- 500 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis
- Rugged, ergonomic die cast aluminum construction allows usage in demanding applications
- Comparator output function provides user with easy Pass/Fail testing system integration capabilities
- Multi-language and engineering unit's selection provides flexible user options
- Field Calibration capability eliminates the need to send to a lab for calibration
- Factory Calibration Certificate included along with popular adapter attachments
- Free Data logging/graphing software provided, sample rate up to 60 readings/sec

Specifications

- Accuracy: +/- 0.3% F.S.
- Selectable Units: N, kgf, ozf, and lbf. (Depending on Range)
- Overload Capacity: 150% of F.S. (LCD flashes beyond 110% of F.S.)
- Measurement Method: Peak, Track, Preset
- Data Sampling Rate: 1000 Hz
- Display: 160 x 128 dot matrix LCD with Backlight
- Display Update Rate: 10 times/second
- Memory: 500 data
- Set Point: Programmable high and low limits in Preset Mode
- Power: 3.6VDC 800mAH Ni-MH rechargeable batteries
- Battery Life: Approximately 16 hours continuous use per full charge
- Charger/Adaptor: Universal USB/BM charger, Input: 110 ~ 240VAC
- Temperature Effects: 0.03% FS per C
- Outputs: USB, RS-232; High & Low Limit NPN's
- Operating Temperature: -10 to 40 C
- Storage Relative Humidity: 20 to 80%
- Housing: Aluminum
- Dimensions: 140 x 71 x 35.5 mm
- Product Weight: 400 grams
- Warranty: 1-Year
- Included Accessories: AC Adaptor/Charger, USB cable, calibration cert., 6 attachments: hook, flat tip, conical tip, chisel tip, notched tip, extension shaft

Warranty

- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
