Checkline

Tachometer with USB Output - Contact / Non-Contact Operation

ORDER ME IN
Product code: IC-DT-2100

Order Me In, Once ordered this item will likely dispatch before the 09th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

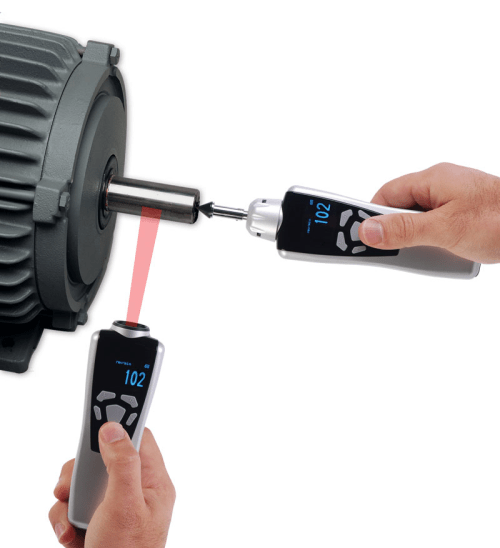

The DT-2100 is an advanced combination contact / non-contact hand-held tachometer with LED display.

Read more

$872.91 AUD + GST
 $960.21 AUD Inc. GST

The DT-2100 is an advanced combination contact / non-contact hand-held tachometer. The DT-2100 features data-logging, USB output and a programmable scaling feature to offset RPM according to application variables. It features a backlit LED Display with upper/lower limit icons and a unique X-Y Graphic mode. Additional display modes unique to the DT-2100 is the "Needle Sweep" and Bar Graph" offers the user a choice of how to view the data. The display can also be inverted to optimize the viewing angle.

In non-contact mode the tachometer measures RPM up to 99,999 RPM at distances up to 13 feet or 500 cm. The DT-2100 can also measure contact RPM, surface speed, or length using the supplied screw-on adapter.
Data logging can be set for single point or continuous logging. Single data points as well as statistics (Max, Min, Average) can be stored in the built-in memory and recalled to the display. Often users need to adjust machinery during testing, with the

DT-2100 you can mount it on a tripod, select continuous logging and adjust machinery as necessary. After the test, you can easily review the data on the DT-2100's display or download to a computer using the optional Windows Software.
The DT-2100 is supplied as a complete kit with 2 cone tip adapters, funnel tip adapter, shaft extension, 6 inch circumference surface speed wheel, reflective tape, 2 AA batteries ... all supplied in a foam-fitted carrying case.

Features

- Data Logging with Continuous, Single Unit or Statistics modes
- View data and statistics on tachometer display or with optional Windows software (Windows 7-10 Compatible)
- Built-in Memory with USB Data Output
- Powerful laser for non-contact measurement 2 to 13.1 feet (5 to 400 cm)
- Non-Contact length measuring mode (requires reflective tape or edge of roller)
- Programmable multiplier to convert reading based on wheel diameter, gear ratios, etc...
- On-screen hi-lo limits for pass/fail analysis
- Auto-detection of contact adapter
- Reversible Display
- 1/4-20 Threaded Insert on bottom of housing for fixed-mounting or use on Tripod

Specifications


- Range (Non-contact): 6-99,999 rpm
- Range (Contact): 0.8-25,000 rpm
- Accuracy: +/- 0.006% of reading +/- 1 least significant digit
- Measuring Units (Speed): rpm, m/min, cm/min, inch/min, ft/min, yds/min, rps, m/sec, cm/sec, inch/sec, km/hr, mph
- Measuring Units (Distance): cm, m, km, in, ft, yd
- Memory: Continuous Mode: 1000/Single Mode: 100/Statistics Mode: 100
- Laser Sensing Distance: 2 inches up to 13.1 Feet (5 to 400 cm)
- Display: Graphical Blue Light OLED, reversible
- Display Update Time: Selectable: 100 ms, 500 ms, 1 sec, 5 sec
- Data Transfer Rate: Selectable: 100 ms, 500 ms, 1 sec, 5 sec (to optional software)
- Power: 2 AA 1.5V batteries or USB
- Battery Life: Approx: 20 hours with brightness set to 20%
- Temperature Limits: 32 - 113 F (0 - 45 C) Non-Condensing
- Construction: Polycarbonate
- Dimensions: 6.1 x 2.2 x 1.4 inch (155 x 55 x 35 mm)
- Product Weight: 4.14 oz (125 g)
- Approvals: CE, RoHS, PSC, FDA, IEC/EN 60825-1 : 2007
- Warranty: 2-Year
- Included Accessories: 2 cone adapters, funnel adapter, 3.5 inch extension shaft, surface speed wheel (6 inch circumference), 2 AA batteries, contact adapter and carrying case
