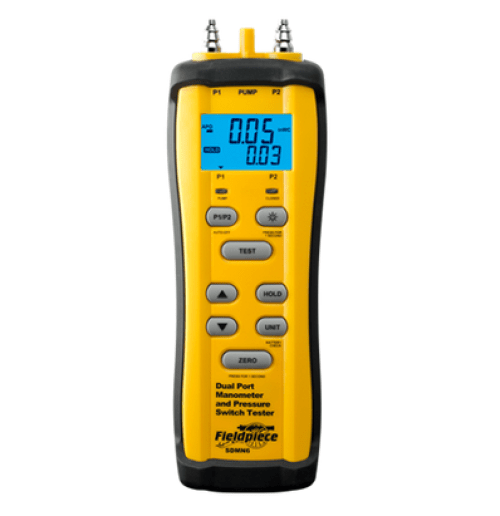

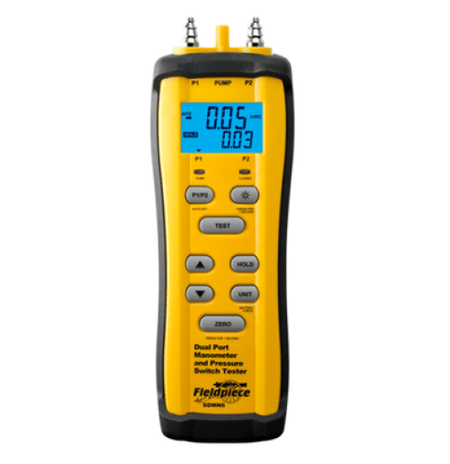

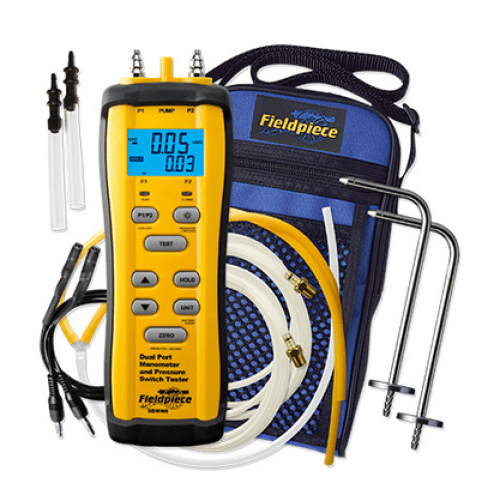

SDMN6 Dual Port Manometer and Pressure Switch Tester

ORDER ME IN
Product code: SDMN6

Backorder Now, once ordered your item will dispatch before the 21st of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The SDMN6 dual-port manometer measures gas and static pressure and also accurately tests pressure switches by simulating a draft with an internal pump.

-Tests pressure switches.

-Easily calibrate any adjustable pressure switch.

-Measures gas, static, and differential pressure.

Read more

$529.10 AUD + GST
 $582.01 AUD Inc. GST
The SDMN6 dual-port manometer measures gas and static pressure and also accurately tests pressure switches by simulating a draft with an internal pump. A pressure switch is a safety device that prevents the furnace from running in an unsafe manner. The SDMN6 tests the pressure switch to determine if it is working properly, or if it is starting to fail which can cause the furnace to run in an unsafe manner.
Plus, with the SDMN6 you can easily calibrate any adjustable pressure switch to manufacturers specification, so theres no need to carry a large variety of pressure switches on your truck.
Features:
- Gas, static, and differential pressure
- Test pressure switches
- Easily calibrate any adjustable pressure switch
- Great for diagnosing furnace performance
Accuracy and ranges:
- inWC: 0.02 on 0.00 to 2.00 (1.5% FS on 2.00 to 60.0);
- mmWC: 0.5 on 0.00 to 51.0 (1.5% FS on 51.0 to 1500);
- mbar: 0.05 on 0.00 to 5.00 (1.5% FS on 5.00 to 150.0);
- psi: 0.001 on 0.000 to 0.07 (1.5% FS on 0.07 to 2.000)
Other specifications:
- Operating environment: 0C to 48C (32F to 118F) at <80% RH
- Storage temperature: -20C to 60C (-4F to 140F), 0 to 80% RH (with battery removed)
- Power: 9V, NEDA 1604A, IEC 6LR61 9V alkaline battery.
- Battery life (alkaline): 200 hours (manometer only, backlight off), 12 hours (pressure switch testing @ 27% pump speed, BL off, approx -2.5WC induced pressure w/o pump bleed accessory)
- Auto power off (APO): 15 minutes
- Units of Measure: inWC, mmWC, mbar, psi
- Resolution: 0.01 inWC
- Overrange: OL or -OL is displayed
- Max Pressure: 900inWC (17.4psi) will damage sensors
- Compatible media: Dry, non-corrosive gases
- Pressure ports: 2 connectors (P1, P2) for flexible tubing (4.5mm to 8mm ID)
- Pump port: 1 connector (PUMP) for 5mm (~3/16 inch) ID flexible tubing
- Lead jacks: 2 banana plug jacks for testing open/close switch status (continuity between terminals)
