Zero Gauss Chamber - IC-ZGC
Order Me In, once ordered this item will likely dispatch before the 14th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
$544.50 AUD Inc. GST

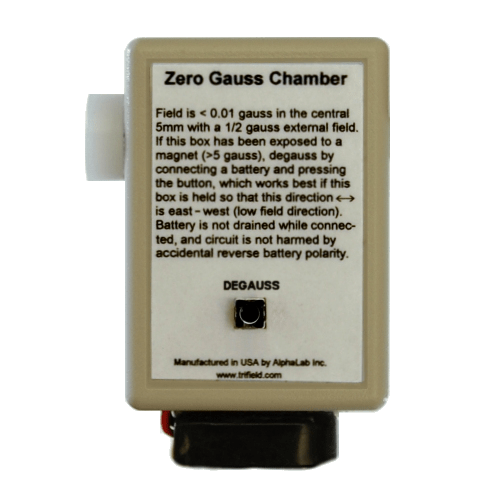

The model ZGC zero gauss chamber reduces the environmental magnetic field (Earth field) to near zero inside the chamber. Any gaussmeter probe which is less than 9.4 mm or 0.370 inch diameter can be placed inside. The meter is then zeroed, which means that it will read zero whenever the probe is subsequently placed in zero field. By using a zero gauss chamber, any offset error is therefore eliminated. The model ZGC is unique in that it contains a degausser (demagnetizer). This is situated between the inner and outer mu-metal shields. When the degauss button is pressed, any accidental magnetization of the chamber, no matter how strong, is erased. Accidental magnetization is a major problem with most zero gauss chambers and it has limited their use. If a magnet comes too close, the chamber will become permanently magnetized and will have an internal field that is typically 0.2 to 0.5 gauss. The chamber must then be degaussed because the Earth field is also around 0.5 gauss, so a magnetized zero gauss chamber will not significantly reduce the field.
Demagnetizing a zero gauss chamber with an external degausser is difficult, even if a degausser is available. Often an external degausser is not strong enough to erase the magnetism of the inner shield, and using a degausser (which is fairly large) is not convenient. When using the ZGC, a single press of the degauss button brings the internal field to less than 0.01 gauss (in all three axes) within a 5 mm wide x 9.4 mm diameter region in the center of the chamber. While the battery is connected, no power is consumed except when the degauss button is being pressed. Even then, a typical 9 volt battery (included) can power over 10 million degauss cycles. After degaussing, the field is less than 0.01 gauss regardless of the orientation of the chamber (within the Earth field). If the long axis of the chamber (left-right direction in photo below) is specifically oriented east-west during the degauss, the internal field will be less than 0.002 gauss, although most gaussmeters do not require that degree of precision.
The white cylindrical spacer (shown in hand below) is included. It is used as a stop to center most gaussmeter probes in the zero gauss region. It
allows the end of a probe to be inserted 1.6 mm past the centerline of the chamber. This is the appropriate distance for exact centering of all
AlphaLab gaussmeter probes, including axial, transverse, universal and 3-axis. The spacer can be inserted in either side (the chamber is symmetric).
