WWS Anemometer with Alarm Kit - IC-WWS-KIT2
DISCONTINUED
Product code: IC-WWS-KIT2
Unfortunately, the WWS-KIT2 has been discontinued, check out our other Anemometers for more alternatives.

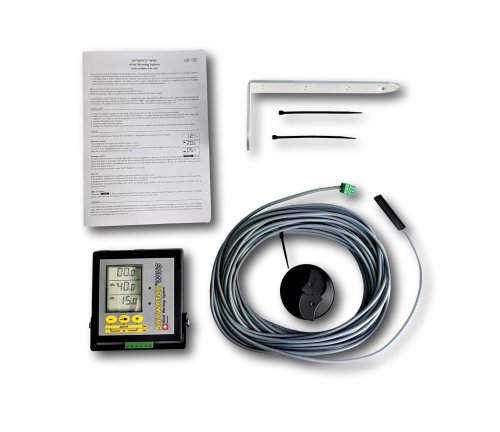

Includes display with external alarm interface, 15m cable, propeller with wind sensor and fixation
Unfortunately, the WWS-KIT2 has been discontinued, check out our other
Anemometers for more alternatives.

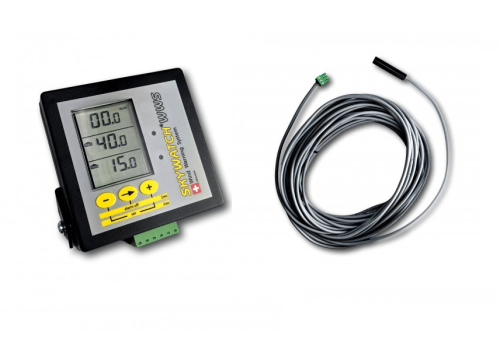

This instrument was developed for protecting persons and properties that may be subject to strong winds. It consists of 2 parts:

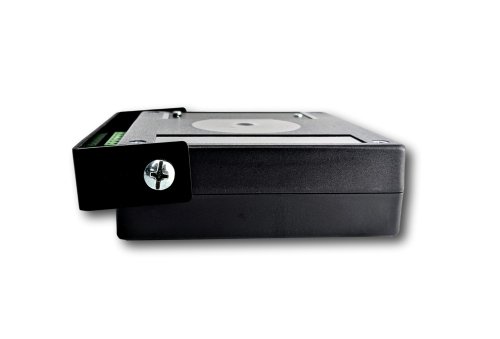

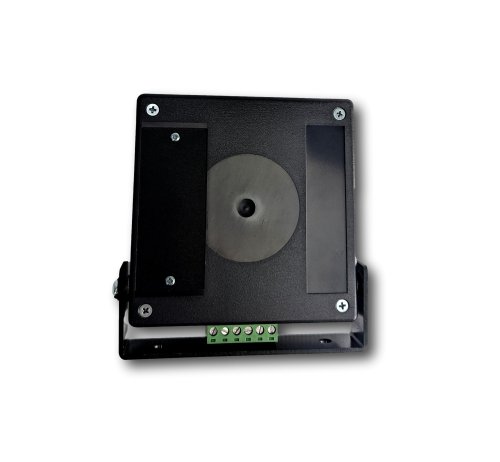

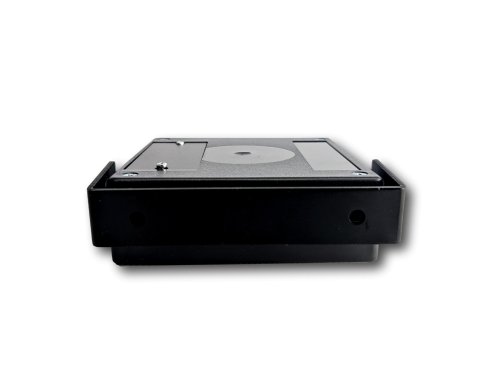

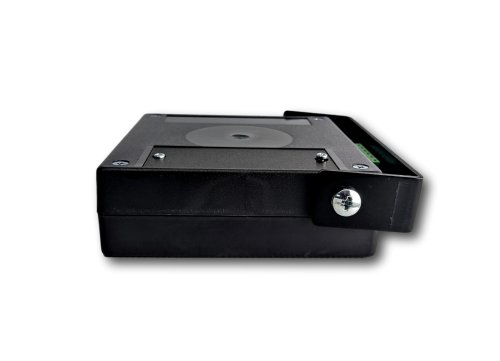

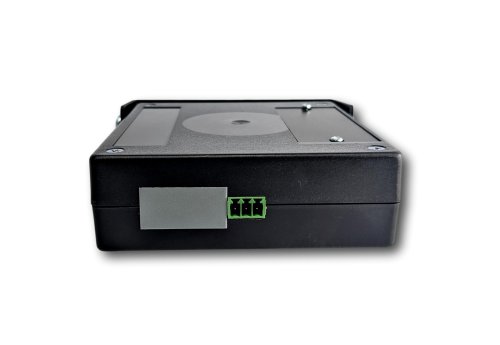

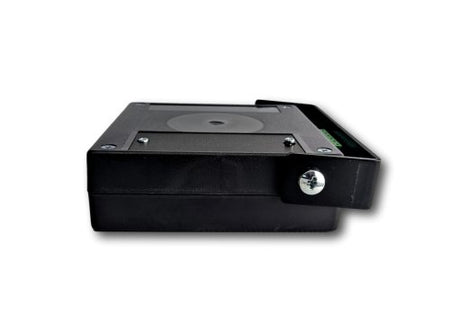

- A display unit of the wind force, with 4 programmable warning thresholds (2 min and 2 max).

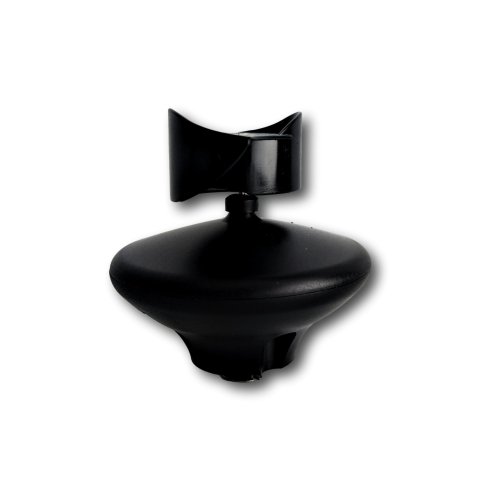

- A multi directional turbine (wind sensor) enabling measurement of the wind in the horizontal plane and in the vertical as 2. well (turbulence behind

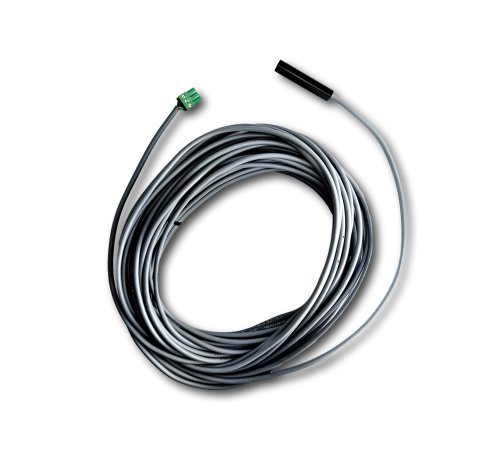

objects). The turbine sends its signal magnetically to a transducer (wind sensor) located at the end of the cable connected to the display. This
transmission system simplifies the installation process.
Four values can trigger an alarm. These values can be set in rising edge as well as in falling edge and the alarm duration is also settable for every
alarm.

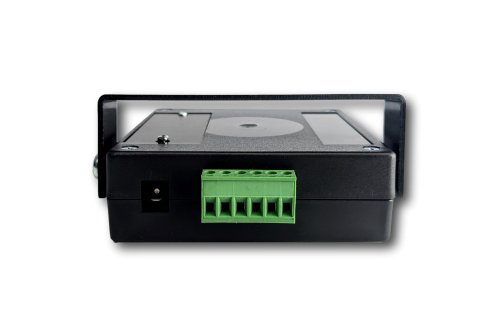

There are four relay outputs (kit 2 and 3 described below). The inactive state of each relay can be selected from no (normally open) and nc (normally
closed). The user assigns to every alarm its relay output.
Specifications
- Units: km/h, mph, m/s, fps and knots
- Resolution: 0.1 unit
- Measuring cycle: each second
- Accuracy: +/- 3 % if horizontally (Windsens3D)
- Measuring range: from 5 to 150 km/h
- Alarms: 2 min, 2 max
