Daviteq

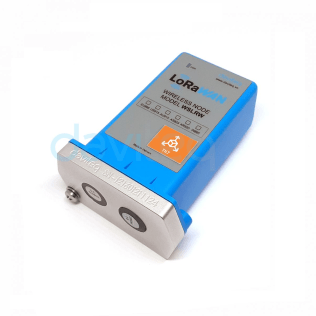

WSLRW-AG-01 Wireless LoRaWAN XYZ Tilt Sensor

DISCONTINUED
Product code: WSLRW-AG-01

For a personalised quote, add to cart. Then in the checkout choose create a quote.

Wireless LoRaWAN XYZ Tilt sensor, 860-870 Mhz for EU868, IN865, RU864.

-Can be used to measure 3 tilt angles X, Y, Z of any object as Tower, Building, Tree, Electricity Tower, Telecom Tower, Bridges, etc.

-Ultra-low power design that allows the sensor to last up to 10 years.

-With IP68 protection.

Read more

The WSLRW-AG is LoRaWAN Tilt Sensor, can be used to measure 3 tilt angles X, Y, Z of any object as Tower, Building, Tree, Electricity Tower, Telecom Tower, Bridges... The Tilt sensor utilises the combination of advanced Accelerometer and Gyro meter to deliver high accuracy and stable measurement of Tilt angle of 03 axis X,Y,Z. With Ultra-low Power design and smart firmware allow the sensor can last up to 10 years with 02 x AA-type battery (depends on configuration). The sensor will transmit data in kilo-meters distance to LoRaWAN gateway, any brand on the market.
Features:
- LoRaWAN communication: LoRaWAN communication standard to allow sensor connect to any LoRaWAN Gateway on the market.
- 10 Year Battery life: Ultra-low power sensing technology from Daviteq with Ultralow power wireless technology allow the sensor can last up to 10 years with 02 x Type AA batteries.
- Stable with high accuracy: Advanced Accelerometer with Gyro meter to deliver high accuracy and stable measurement of Tilt angle of 03 axis X,Y,Z.
- With IP68 protection: For both indoor and outdoor applications
Specifications
Sensor specifications:
- Tilt Sensor: Built-in advanced accelerometer and gyro meter to deliver tilt angle measurement of X, Y, Z
- Measurement range: +/- 90 degrees of XYZ
- Repeatability: +/- 0.25 degrees
- Sensor sampling rate: 1Hz max
- Alarm setting: setting the alarm threshold for each angle
LoRaWAN specifications:
- Data rate: 250bps to 5470bps
- Antenna: Internal Antenna 2.67 dbi
- Battery: 2x AA size 1.5VDC, battery not included
- RF Frequency and Power: 860 to 930Mhz, +14 .. +20 dBm, configurable for zones: EU868, IN865, RU864, KR920, AS923, AU915, US915
- Protocol: LoRaWAN
- Data sending modes: interval time, alarm occurred and manually triggering by magnetic key
- RF Module complies to: ETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (US), ARIB STD-T108 (Japan) Vietnam Type Approval
- Working temperature: -40 to 60 C (with AA L91 Energizer)
- Dimensions: H106xW73xD42
- Net-weight: 190 grams
- Housing: Aluminum plus Polycarbonate plastic
