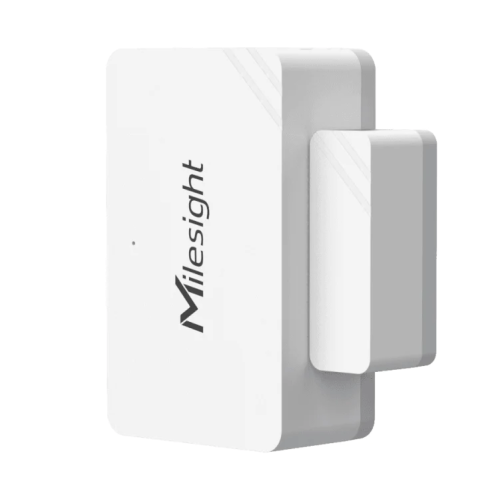

WS301 - Magnetic Contact Switch LoRaWAN Sensor
Order Me In, Once ordered this item will likely dispatch before the 18th of November 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
The WS301 is a compact LoRaWAN switch sensor can monitor the opening or closing of doors or windows to make it easier to monitor the movement of people or to maintain security in private spaces such as in offices or schools.
- Can be mounted on any metallic surface on doors or windows to detect whenever it is opened or closed.
- Can operate up to 4 years before changing batteries.
$98.23 AUD Inc. GST
Specifications
Frequency
|
CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923
|
Tx Power
|
16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
|
Sensitivity
|
-137dBm at 300bps
|
Work Mode
|
OTAA/ABP Class A
|
Detection Distance
|
10 to 15 mm
|
Button
|
1x Power Button (Internal), 1x Tampering Button
|
Configuration
|
Mobile App (via NFC) or PC software (via USB Type-C)
|
Alarms
|
Open/Close Status, Tamper, Low Battery
|
Power Supply
|
1x 1200 mAh ER14250 Li-SOCl2 battery
|
Battery Life
|
4 to 7 years
|
"Operating Temperature "
|
-20 to +60 C
|
Relative Humidity
|
less than or equal to 90% (non-condensing)
|
Ingress Protection
|
IP30
|
Dimensions
|
Sensor: 50 30 17 mm (1.97 1.18 0.67 in) Magnet: 30 17 8 mm (1.18 0.67 0.31 in)
|
Installation
|
On the flat surfaces with screws or 3M tapes
|
