RAK Wireless

WisBlock Dual IO Base Board - IC-110081

ORDER ME IN
Product code: IC-110081

Order Me In, Once ordered this item will likely dispatch before the 16th of November 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

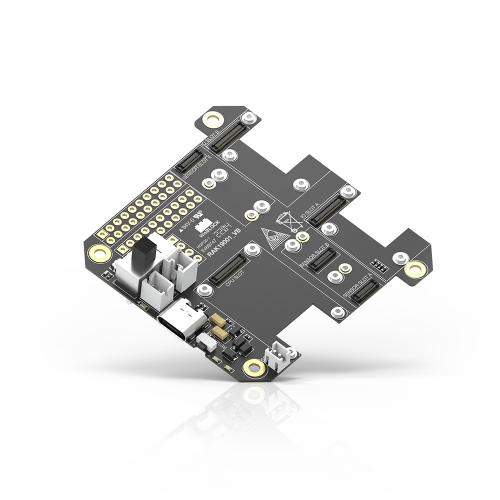

The RAK19001 is the newest WisBlock Base Board. With 2 IO slots for large modules and 6 sensor slots for sensors, GNSS modules and similar, it opens the WisBlock to more complex applications where many modules are required.

  • Has all GPIO's exposed on a solder pad that makes it easy to connect other (third party) modules.
  • Also has solar panel connector, rechargeable battery connector and separate connector for non-rechargeable batteries.
  • Modular design for added functionality and expansion when needed.

Read more

$29.90 AUD + GST
 $32.89 AUD Inc. GST
The RAK19001 is the newest WisBlock Base Board. With 2 IO slots for large modules and 6 sensor slots for sensors, GNSS modules and similar, it opens the WisBlock to more complex applications where many modules are required. As additional feature, it has all GPIO's exposed on a solder pad that makes it easy to connect other (third party) modules. Other features are - Solar panel connector - rechargeable battery connector - separate connector for non-rechargeable batteries - USB type C connector - User definable button - On/Off switch on the base board.
Features:
- Flexible building block design, which enables modular functionality and expansion
- High-speed interconnection connectors in the WisBlock Base board to ensure signal integrity
- Two (2) IO slots
- Six (6) Sensor (A to F) slots
- All key input-output pins of WisBlock Core are exposed via headers
- Access to various communication bus via headers: I2C, SPI, UART, and USB
- One user-defined push button switch
- Supports both 5 V USB, 3.7 V rechargeable battery, and 3.3 to 5.5 V non-rechargeable battery as power supply
- The power supply for the WisBlock modules boards can be controlled by the WisBlock Core modules to minimize power consumption
- Slide switch to select between a rechargeable or non-rechargeable battery
- Size: 60 x 67 mm
Includes:
- 1 pc RAK19001
- 1 pc USB Cable
- 1 pc Battery Cable
- 22 pc M1.2*3 Screw
- 8 pc M2.5*4 Screw
