WindPro Wireless Anemometer
ORDER ME IN
Order Me In, once ordered this item will likely dispatch before the 26th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
The WindPro is a long range wireless anemometer that can connect two sensors at the same time for real time monitoring, data recording and alerts for wind speed and wind direction.
- Users can configure different alarm types for wind speed and wind direction for each sensor, as well as set up to four threshold for each.
- Activate different functions of the WindPro such as the built-in flashlight, audible alarms and other control elements using the display console.
- Has different connectivity options (RS232 / USB, 4-20mA Loop, Relay Switches).
- View recorded data and get alarm notifications through the WindPro app (available in Android and iOS).
Regular price
$3,079.90 AUD
+ GST
$3,387.89 AUD Inc. GST
$3,387.89 AUD Inc. GST

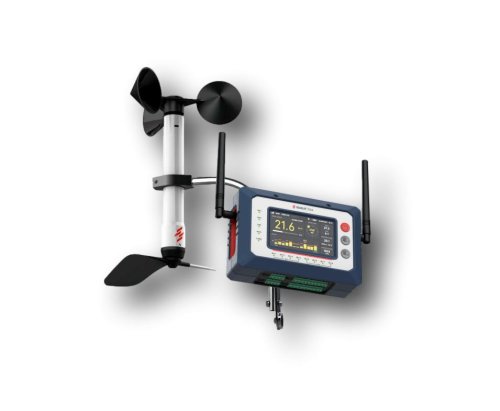

WindPro is an industrial-grade wireless anemometer up to 1000m transmission range. It can accurately measure wind speed, wind direction, wind chill, temperature, air pressure, etc. WindPro can connect 2 different sensors at a time. With its sturdy design and reliable performance, WindPro is built to withstand the toughest environments. Additionally, it has four configurable alarms and multiple industrial outputs, such as 4-20mA, RS232, and Bluetooth.
User-friendly Real-time Wind Alarm System

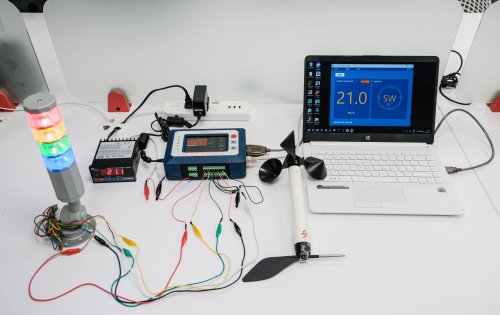

The WindPro is equipped with a built-in visual flashlights and audio alarm, which can be triggered by up to 4 different wind thresholds. With an audio alarm level of up to 80 db, the WindPro is sure to grab your attention whenever wind speeds exceed a certain threshold. In addition to its built-in alarm function, the WindPro can also connect to external devices such as sirens and 3-color LED warning lights via contact relays, making it a comprehensive wind monitoring system that can alert you to changing conditions in real-time.
Ultra Long Wireless Range
- Utilizes Sub-1 GHz industrial wireless technology for long-range communication up to 1000m.
- Equipped with a high-gain antenna for extended wireless coverage and reliable signal transmission.
- Supports real-time data from 2 different sensors, preventing downtime and increasing work efficiency.
4.3" Full-Color Touchscreen
The WindPro console comes with a high-brightness and color display that ensures all data is easily visible even in sun exposure outdoor conditions. With its 4.3" large touchscreen, users can easily check the information and switch between pages quickly.
24/7 Data Logging
Never worry about losing important wind data. The WindPro has a data logging function and 128MB internal memory for 3-month data storage. All data can be exported to PC via ScarletWind software in Excel or CSV data exchange format, making it accessible for corporates and EHS officers to do further analysis.

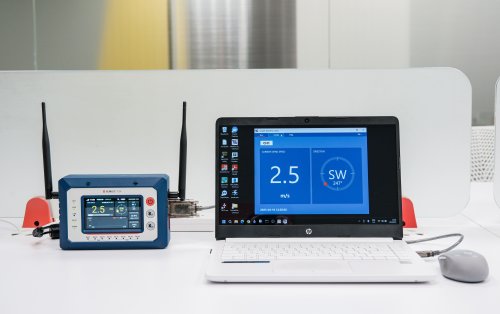

Synchonize Wind Data on your PC
Access WindPro data on your PC through RS-232 serial port. Users can view real-time information directly on desktop or laptop in addition to the console. Scarlet also offers free protocols that allow users to feed WindPro data into their own systems such as SCADA or PLC.
Real-time Wind Monitoring with WindPro APP
- Bluetooth broadcasting for real-time wind speed and direction updates on mobile phone.
- Receiving instant notifications on mobile phone to stay alert of any potential issues.
- Users within 25 meters can connect the device simultaneously through App.
Output options:
- RS232 Serial Communication: Deliver instant and continuous data to industrial automation control systems such as PLCs, HMIs and SCADA.

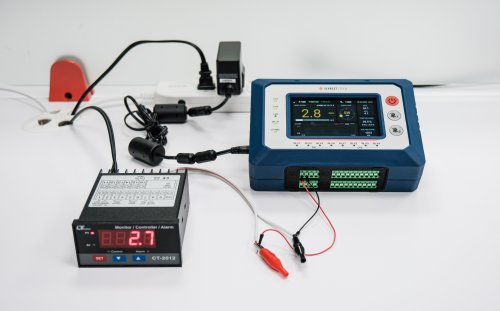

- Relay Switches: Features 4 independent and threshold-configurable relay switches per channel to trigger alarms or activate external devices
- 4-20mA Current Loops: Provide reliable readouts of critical industrial metrics, easily transmit the value to large signage on site.
- Relay Switches: Features 4 independent and threshold-configurable relay switches per channel to trigger alarms or activate external devices
- 4-20mA Current Loops: Provide reliable readouts of critical industrial metrics, easily transmit the value to large signage on site.
Specifications
Wireless sensor:
Wind speed:
- Range: 0.3 to 50 m/s +/- 2
- Accuracy: +/- 0.2% full scale
- Unit: m/s, knots, mph, km/hr, ft/s
- Accuracy: +/- 0.2% full scale
- Unit: m/s, knots, mph, km/hr, ft/s
Wind direction:
- Range: 0 to 359 degrees; no blank sector
- Accuracy: +/- 0.2
- Resolution: 0.1
Atmospheric pressure:
- Range: 50 to 1100
- Accuracy: +/- 0.2 degrees
- Unit: hPa, Atm, mmHg, bar, Pa, inHg
Ambient temperature:
- Range: 0 to 60 C
- Accuracy: +/- 1 C
- Unit: C and F
Console:
- Data collection: wind speed (live/min/max), wind direction, ambient temperature, wind chill, Beufort scale and air pressure
- Sound alarm: more than 110 dB
- Alert threshold: 3x for wind speed, 1x for wind direction
- Data recording memory: 128 MB
- Data recording interval: every 2 minutes for wind speed, wind direction, air temperature and air pressure
- Mobile app: WindPro app for Android and iOS
- PC utility: WindPro RS232 utility software
- Dimension: 185 x 126 x 65mm
- Sound alarm: more than 110 dB
- Alert threshold: 3x for wind speed, 1x for wind direction
- Data recording memory: 128 MB
- Data recording interval: every 2 minutes for wind speed, wind direction, air temperature and air pressure
- Mobile app: WindPro app for Android and iOS
- PC utility: WindPro RS232 utility software
- Dimension: 185 x 126 x 65mm
Wireless connectivity:
- Wireless range: maximum range of 1,000 meters
- Data rate: every 2 seconds
- Installation: magnetic sensor bracket and display holder
- Power supply (sensor): up to three years using lithium battery
- Power supply (console): power adapter
- Data rate: every 2 seconds
- Installation: magnetic sensor bracket and display holder
- Power supply (sensor): up to three years using lithium battery
- Power supply (console): power adapter

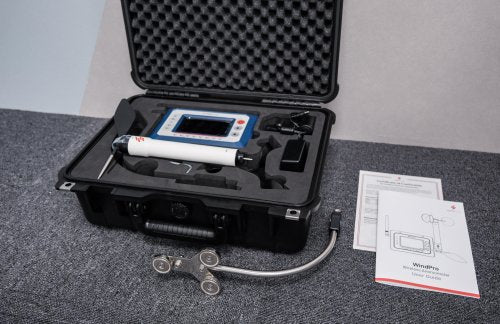

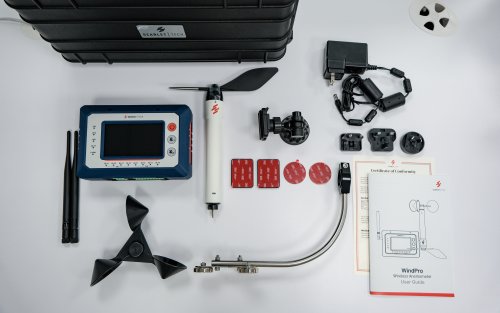

Standard package includes:
- WindPro console and antenna WL-21 wireless sensor (Wind speed and wind direction)
- Magnetic sensor mounting bracket
- Magnet holder kit for WindPro console
- Power adapter (input:100-240V, 50/60Hz, 1.5A; output:25V, 2.5A)
- User manual & Certificate of Confirmity
- User manual & Certificate of Confirmity
- Mobile App RS232 Windows Utility
- Cloud-based IoT Web Portal (Optional)
- 24/7 Online Data Logging (Optional)
