Wind Speed Data Logger - Wind101A
Order Me In, once ordered this item will likely dispatch before the 21st of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
$1,234.75 AUD Inc. GST

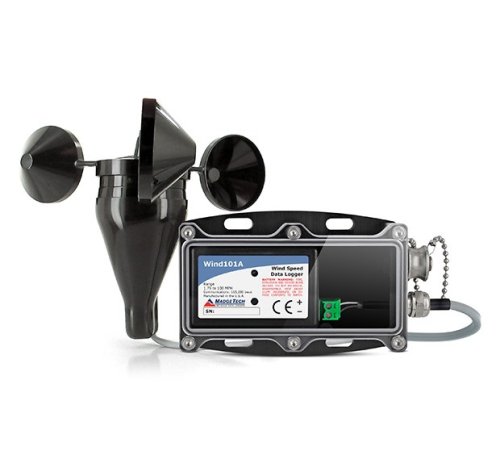

The Wind101A is a complete system to accurately measure and record wind speed. This low cost wind speed recording system comes complete with a data logger, weatherproof enclosure, a three-cup anemometer and all the necessary cabling to quickly get up and running. The logger can record up to 500,000 readings and the storage medium is non-volatile, solid state memory, providing a maximum data security even if the battery becomes discharges.
The device can be started and stopped directly from a computer using our user-friendly software.
Features
- Durable housing for logger
- 3-cup anemometer
- 0 to 160 kph range
- +-2.5% Calibrated accuracy over 16 to 160 kph range
- 10 year battery life
- A second reading rate
- Multiple start/stop function
- Ultra high speed download
- 500,000 Reading storage capacity
- Battery life indicator
- Optional password protection
- Cable length: 25 ft
This logger comes with free software and USB connection to attach to your computer.
Specifications
Wind Measurements:
- Gust Survival Speed: 214 mph (95 m/s)
- Threshold Wind Speed: 1.75 mph (0.75 m/s)
- Maximum Measurable Speed: 100 mph (contact factory about use at higher wind speeds)
- Wind Resolution: 0.085 mph at a 10 second reading rate
- Wind Accuracy: ±2 mph 0 to 10 mph, ±2.5 % of reading 10 to 100 mph
- Rotation Diameter: 7.5 in (191 mm)
- Mount: Accepts 0.5 in (13 mm) dia. Mast
General:
- Memory: 1,032,192 readings
- Baud Rate: 115,200
- LED Indicators: Red and Green
- Push-Button Start: Yes
- Battery Life: Dependent on frequency and duty cycle. 10 months typical at 25 °C and 10 second reading rate
- Dimensions: Data Logger: 1.4 in x 2.5 in x 0.6 in (36 mm x 64 mm x 16 mm)
- Operating Environment: -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 100 %RH
