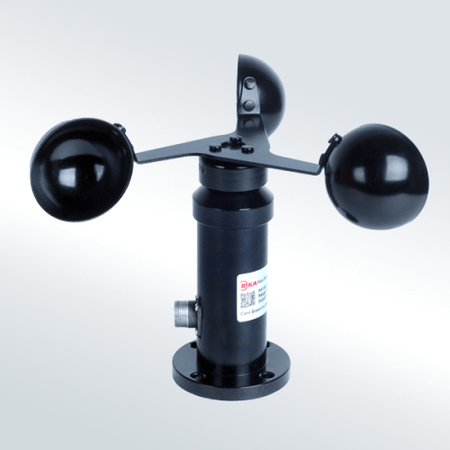

RK100-01 Metallic Wind Speed Sensor (Pulse signal output)
ORDER ME IN
Backorder Now, once ordered your item will dispatch before the 09th of July 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The RK100-01 is a metallic wind speed sensor with a test range of 0-30 m/s. Cable length: 2.5 meters. IP65 protection. Pulse signal output.
Regular price
$239.50 AUD
+ GST
$263.45 AUD Inc. GST
$263.45 AUD Inc. GST
The RK100-01 Wind speed sensor is specifically designed to accurately and reliably measure wind velocity under the adverse environmental conditions. Digital circuits capable of strong RFI & EMI resistance and automatic temperature compensation are build-in,it output voltage and current signals by electromagnetic induction, The value and horizontal wind speed are linear relation.
The Shell is made of high-strength aluminum alloy, the wind cup is made of 304 stainless steel, the PCB board is painted with anti-corrosion coating, featured with water proof, corrosion resisting. Inside and turning position have sealing rings with nice sealing function, stop water, salt fog and dust getting in.
Features:
- Low starting threshold
- Massive all-metal construction
- Strong corrosion resistant ability
- Stainless steel Wind cup, anti-wind load until 70m/s
- Double bearing design
- Surge protection design
- Easy Installation
Specifications
- Range: 0-30 m/s, 0-60 m/s
- Accuracy: +/- 0.5m/s (<5m/s); +/- 3%FS (<5m/s)
- Supply voltage: 5-24VDC
- Staring Threshold: <0.5m/s
- Limit Wind Speed: 70m/s
- Ingress Protection: IP65
- Operating Temperature: -30 C to +70 C
- Weight(unpacked): 240g

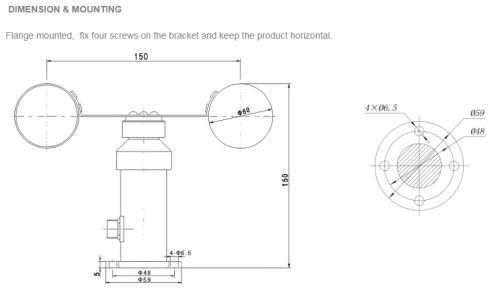

- Dimension: Cup rotor: 200 mm, Height: 150 mm
- Main material: Cup: 304 stainless steel, Main Body: Aluminum alloy
- Finish: Polyester powder electrostatic spraying(black)
- Storage Condition: 10 C to 60 C at 20%-90%RH
