Weather Station Engineer - IC-WEATHERENG
Backorder Now, once ordered your item will dispatch before the 28th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$13,628.01 AUD Inc. GST

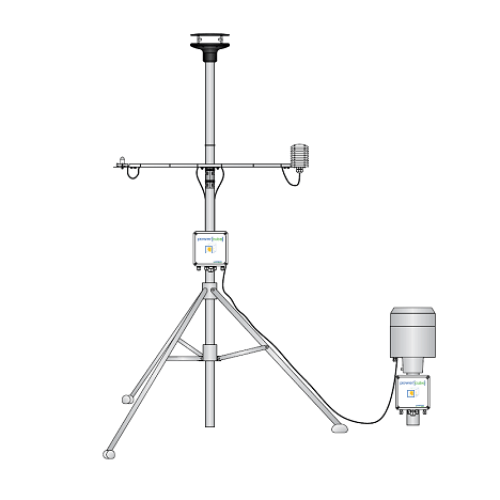

The Weather Station Engineer uses high-quality sensors combined with high-performance communication technology guarantee in addition to reliable and precise measurement data unrestricted availability of the measured environmental parameters. LAMBRECHT meteo offers standardised environmental measurement stations for all meteorological applications.
- Ultrasound sensor u[sonic]: Seawater resistant sensor for wind speed and direction.
- Precipitation sensor 15189: for rainfall
- Temperature/humidity/pressure sensor 8095: For temperature, humidity and barometric pressure
- Pyranometer: For measuring solar radiation
- Data logger: Allows visualization of measurements though a web browser; Controls alarm input with 4 digital outputs, 8 logically connectable warning channels
- Power[cube]: Power supply for the sensors and wireless connection
- Mounting Pole Not Included
Features:
- Lambrecht meteo environmental measurement stations are completely preconfigured.
- Easy installation, and the wiring needs minimal effort.
- Sensors are extraordinary precise, robust and durable.
- Data storage lasts for a whole year.
- Minimal maintenance costs due to best product quality
- Continuous data transfer via Ethernet protects against data lost.
- Evaluation software and cable are included in scope of delivery.
Specifications
Ultrasonic wind sensor:
- Wind direction Meas. range: 0...359.9
- Wind direction Accuracy: < 2 (> 1 m/s ) RMSE
Precipitation sensor:
- Meas. range: 0...8 mm/min
- Resolution: 0.1 mm
- Accuracy: +/- 2 % with intensity correction
Temp./humidity/air pressure sensor:
- Temperature (range): -40...+70 C
- Temperature (accuracy): Accuracy: +/- 0.3 C at (v > 2 m/s)+/- 0.4 C (1040 C)/ +/- 0.8 C (-1070 C)
- Relative humidity (range): 0...100 % r. h.
- Relative humidity (accuracy): +/- 3 % (10...90 %) r. h
- Barometric pressure (range): 500...1100 hPa
- Barometric pressure (accuracy): +/- 2 hPa (-30...+70 C)
- Pyranometer: 0...1400 W/m2
Data logger:
- Ethernet: 10/100 BaseT - connector RJ45 shielded
- Interface: 3 x RS 485 (1 x freely configurable)
- Input: 4 analogue/ digital inputs (2 x freely configurable
