Waterproof Portable Handheld Dissolved Oxygen & BOD Meter (With 10 Meter Cable)
ORDER ME IN
Order Me In, Once ordered this item will likely dispatch before the 27th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

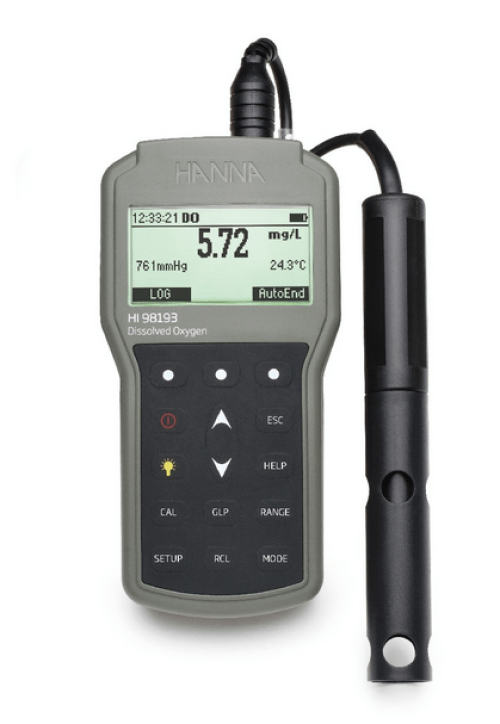

The HI98193 is a rugged, portable dissolved oxygen (DO) meter designed for demanding applications.
- - Supplied with the HI764073 polarographic dissolved oxygen probe. This probe uses preformed PTFE membrane caps that are field replaceable.
- - Waterproof meter and complies with IP67 standards and measures DO, barometric pressure, BOD and temperature.
- - Also Supplied complete with all accessories to perform a DO measurement with carrying case.
Regular price
$1,600.00 AUD
+ GST
$1,760.00 AUD Inc. GST
$1,760.00 AUD Inc. GST
The HI9147 is a rugged, water-resistant dissolved oxygen (DO) meter designed for aquaculture applications. The meter and probe use galvanic sensor technology where the electrodes potential difference drives the reaction, requiring no external voltage. Oxygen diffuses across the membrane and the system establishes a current proportional to the concentration of dissolved oxygen present. HI9147 comes with a galvanic, HDPE membrane caps, electrolyte fill solution, a protective shield, and sturdy carrying case.
The HI98193 portable DO meter has extended ranges of up to 50 ppm and 600% saturation. When measuring dissolved oxygen, compensations for pressure, temperature and salinity are essential for an accurate reading. Pressure compensation can be done automatically with the meters built-in barometer or by manual entry. Calibration of the built-in barometer is done to one point by entering the value of a reference barometer. Pressure is displayed in user-selectable units including mmHg, inHg, atm, psi, kPa, and mbar.
The HI764073 DO probe has a built-in temperature sensor for automatic temperature compensation. The temperature sensor can be calibrated to one or two points. Manual entry of salinity values allows for the salinity compensation of dissolved oxygen readings in saline waters. Other features include built-in methods and calculations for the measurement of Biological Oxygen Demand (BOD), Oxygen Uptake Rate (OUR) and Specific Oxygen Uptake Rate (SOUR).
GLP data is accessible by a fixed dedicated key this data includes date, time, pressure, calibrated value, temperature and salinity value of the last calibration. Access help at any time at the press of a dedicated button and view content specific information based on the screen that is currently being viewed.
The compact, durable HI760193 carrying case is thermoformed to hold all necessary components for taking a field measurement, including the meter and electrode, beakers, buffer solutions, cleaning solutions and storage solutions.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
IC-HI98193-10 Features
- Display dissolved oxygen in % saturation or mg/L .D9- Automatic barometric pressure compensation with 1 po
- Automatic barometric pressure compensation with 1 point calibration
- Displays pressure in user-selectable units (mmHg, inHg, atm, psi, kPa, mbar)
- Automatic temperature compensation with one or two point temperature calibration
- Displays temperature in Celcius or Fahrenheit
- Determination of Biochemical Oxygen Demand (BOD), Oxygen Uptake Rate (OUR) and Specific Oxygen Uptake Rate (SOUR).
- Automatic polarization of polarographic probe at startup to ensure that the probe is ready to use when measurement screen is displayed.
- Ready-to-use field replaceable PTFE membrane caps.
- Log-on-demand: Store measurement data at the press of a button.
- GLP data provides calibration data including date, time, pressure, calibrated value, temperature and salinity value of the last calibration.
- Contextual help at the press of a button
- Backlit, Graphic LCD.
Standard package includes:
THe HI98193 is supplied with HI764073 DO probe, preformed PTFE membrane cap (2), HI7041S electrolyte solution (30 mL), HI7040 bicomponent zero oxygen solution, 100 mL plastic beakers (2), HI92000 PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, instrument quality certificate and HI760193 rugged carrying case.
Specifications
Dissolved Oxygen Range:
|
0.00 to 50.00 ppm (mg/L); 0.0 to 600.0% saturation
|
Dissolved Oxygen Resolution:
|
0.01 ppm (mg/L); 0.1% saturation
|
Dissolved Oxygen Accuracy:
|
1.5% of reading 1 digit
|
Dissolved Oxygen Calibration:
|
automatic one or two point at 100% saturation (8.26 mg/L) and 0% saturation (0 mg/L)
|
Dissolved Oxygen Temperature Compensation:
|
automatic from 0 to 50C (32 to 122F)
|
Barometric Pressure Compensation:
|
automatic from 450 to 850 mmHg
|
Salinity Compensation:
|
automatic from 0 to 70 g/L
|
Temperature Range:
|
-20.0 to 120.0C (-4.0 to 248.0F)
|
Temperature Resolution:
|
0.1C (0.1F)
|
Temperature Accuracy:
|
0.2C; 0.4F (excluding probe error)
|
DO Probe:
|
HI764073 polarographic DO probe with protective sleeve, internal temperature sensor, DIN connector and 4m (13) cable (included)
|
Logging Type:
|
Log-on-demand
|
Logging Memory:
|
up to 400 samples
|
Connectivity:
|
opto-isolated USB with optional HI 92000 software and micro USB cable
|
Automatic Shut-Off:
|
user selectable
|
BOD/OUR/SOUR:
|
direct DO; BOD (biochemical oxygen demand); OUR (oxygen uptake rate); SOUR (specific oxygen uptake rate)
|
Battery Type/Life:
|
1.5V AA batteries (4) / approximately 200 hours of continuous use without backlight (50 hours with backlight)
|
Environment:
|
0 to 50C (32 to 122F); RH 100% (IP67)
|
Dimensions:
|
185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4)
|
Weight:
|
400 g (14.2 oz.)
|
Atmospheric Pressure Range:
|
450 to 850 mm Hg; 17.72 to 33.46 in Hg; 600.0 to 1133.2 mbar; 8.702 to 16.436 psi; 0.5921 to 1.1184 atm; 60.00 to 113.32 kPa
|
Atmospheric Pressure Resolution:
|
0.1 mm Hg; 0.01 in Hg; 0.1 mbar; 0.001 psi; 0.0001 atm; 0.01 kPa
|
Atmospheric Pressure Accuracy:
|
automatic at one custom point
|
