NOTE: Requires the Siteview software, sold separately.

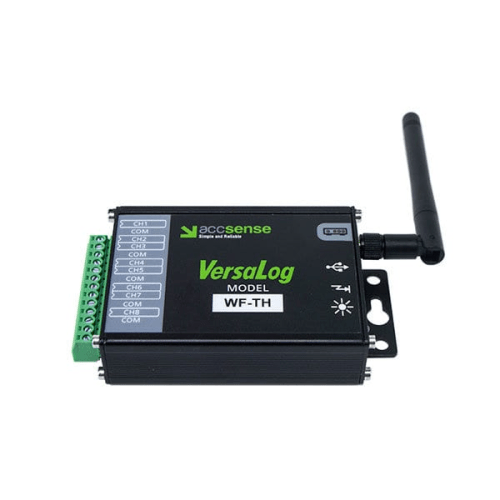

The VL-WF-TH WiFi Thermistor Data Logger is an 8-channel, battery-powered, standalone, and WIFI-enabled thermistor data logger. The logger measures eight external thermistors and saves data in 8 megabytes of memory.
Embedded WIFI module allows remote data monitoring and downloading.
16-bit ADC makes it well suited for science and laboratory applications where precise and accurate measurements are critical.
Its aluminum enclosure makes it excellent in the harshest industrial environment.
Simply power the logger in WIFI covered area and access it from your computer for configuration, downloading graph viewing, etc.
Features:
- The 16-bit analog-to-digital converter meets most high-resolution requirements
- 8-megabyte memory stores up to 4 million measurements
- Eight external thermistor/resistor inputs
- Both USB and WiFi (requires external power) interfaces
- Wide sampling interval selections (1 second to 12 hours)
Memory Capacity
All VersaLog data loggers come with 8MB onboard flash memory. The following table shows the relationship between the number of enabled channels, sampling interval, and max time span of logging.
Specifications
Inputs:
- Connections: Pluggable terminal block for eight external channels
- Channels: Eight external thermistor/resistor inputs. (10000 ohms NTC
thermistor recommended)
- Resolution: 0.0018%
- Accuracy: +/- 0.2% FSR @ 25C
Alarms:
- Channel Alarms: Two editable alarm thresholds per channel
- Alarm Indicator: On-board LED lights in red when in alarm condition
On-Board Memory:
- Capacity: 8 megabytes (~4 million measurements)
- Data Retention: Over 20 years
Sampling & Logging:
- Sampling interval: 1 second to 12 hours user selectable
- Logging Mode: Stop recording or FIFO when memory is full
- Logging Activation: Programmable instant, start delay or field push-button activation
Power:
- Power: Built-in 3.6V Lithium Battery
- Life Cycle: 10 years based on 1-minute sampling interval
Physical:
- Material Aluminum enclosure
- Dimensions 88 X 64.2 X 24 mm (3.46 X 2.53 X 0.95 inches)
- Weight 200g
- Mounting Probe/wall mount holes for hanging/mounting
Other specifications:
- LED Indicator: Normal Sampling: green when sampling/ Alarm: red when sampling/Low Battery: amber when sampling
- Operating Environment: -40 ~ +70C (-40F ~ 158F), 0~95%RH non-condensing
- Clock Accuracy: +/- 1 minute per month
- Approvals: CE, FCC
Computer requirements:
- Computer with 1.0 GHz or faster processor, 1GB Memory
or higher & 10 GB of available hard-drive space or higher
- Windows XP with SP2 or later, Vista, Windows 7, 8, 10.
- At least one USB port or one COM port
- Requires Siteview software, sold separately
Communications:
Interface: USB (USB cable included), WiFi Module (USB wall adapter included)
- WiFi Module:
- Standard: 802.11b/g/n,
- Frequency Range: 2.412 2.484GHz
- Transmit Power: 11-18 dBm
- Receive Sensitivity: -82 to -93 dBm
- Security: WEP/WPA-PSK/WPA2-PSK
- Encryption: WEP64/WEP128/TKIP/AES
- Enabled/Disabled by SiteView software
