Home > VelociCalc Multi-Function Ventilation Meter 9650
TSI

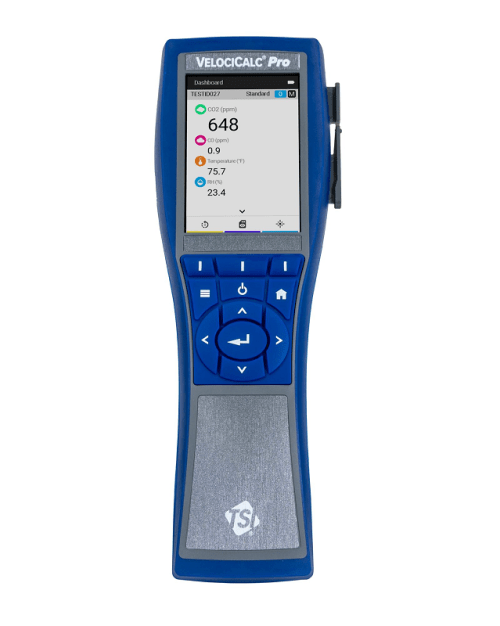

VelociCalc Multi-Function Ventilation Meter 9650

ORDER ME IN
Product code: 9650

Backorder Now, once ordered your item will dispatch before the 20th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The VelociCalc Meter Model 9650 is used to measure HVAC system pressures and can be connected to pitot probes for performing duct traverses. Its ergonomic design includes a probe holder...

Read more

$5,154.73 AUD + GST
 $5,670.21 AUD Inc. GST
The VelociCalc Meter Model 9650 is used to measure HVAC system pressures and can be connected to pitot probes for performing duct traverses. Its ergonomic design includes a probe holder and integrated magnets allowing for attachment to exposed ductwork or other metallic surfaces for hands-free operation.
The Model 9650 is designed to work with a wide range of plug-in probes for measuring air velocities or IAQ parameters. In addition, the 9650 includes built-in workflows for calculating the percentage of outside air when used with an IAQ probe, heat flow calculations for testing heating and cooling coils when used with specific probe types, and grid guided duct traverse methodologies.
3 Year Warranty for the meter only (2 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
9650 Features:
- Large, high-resolution color display
- Intuitive menu structure allows for ease of use and setup
- Optional smart plug-in probes, including thermoanemometer, rotating vane and CO2 probes with calibration certificates
- Input for K-alloy thermocouple
- User-customizable soft keys for quick access to common functions
- Calculate the percentage of outdoor air with IAQ probe
- Integrated magnets for hands-free operation
- Supports multiple languages
- Air density compensation with on board barometric pressure sensor and temperature input
- Static and differential pressure measurement
- Pitot probe duct traverse
- Programmable K-factors
- Print data from instrument with optional USB portable printer (802241)
- Print data from instrument with optional bluetooth wireless portable printer (802241) Model 9650 only
- Step by step guided workflows for Heat flow calculations in BTU/hr or kW and Percentage of outdoor air
- Duct traverse grid measurements for: ASHRAE 111 log-Tchebycheff, ASHRAE 111 equal area, EN 12599 and EN 16211
Standard package includes:
- 9650 Instrument
- Wrist strap
- Static pressure probe
- 2.4m tubing
- Carrying case
- 4 AA alkaline batteries
- USB cable
- Owners manual & calibration certificate
