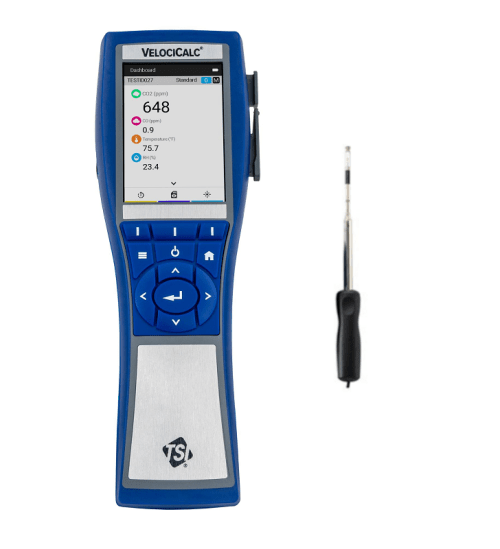

VelociCalc Multi-Function Ventilation Meter 9630 (With 964 Probe with Standard Calibration Certificates
ORDER ME IN
Order Me In, Once ordered this item will likely dispatch before the 06th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
The 9630 VelociCalc is a portable, handheld multi-function micromanometer featuring a menu-driven user interface for easy operation. It is used to measure HVAC system pressures and can be connected to pitot probes for performing duct traverses and can also measure gases such as carbon monoxide and carbon dioxide using the appropriate probes.
- With built-in guided workflows for step-by-step measurement of percentage of outdoor air and heat flow calculations.
- Has a high resolution screen that displays multiple measurements at the same time.
- Includes TSI 966 straight air velocity, temperature and humidity probe.
Regular price
$3,408.00 AUD
+ GST
$3,748.80 AUD Inc. GST
$3,748.80 AUD Inc. GST
The VelociCalc Meter Model 9630 is used to measure HVAC system pressures and can be connected to pitot probes for performing duct traverses. Its ergonomic design includes a probe holder and integrated magnets allowing for attachment to exposed ductwork or other metallic surfaces for hands-free operation. The Model 9630 is designed to work with a wide range of plug-in probes for measuring air velocities or IAQ parameters. In addition, the 9630 also includes a built-in workflow for calculating the percentage of outside air used to determine ventilation effectiveness in a building or room when used with an IAQ probe.
3 Year Warranty for the meter only (2 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
9630-964 Features
- Large, high-resolution color display
- Intuitive menu structure allows for ease of use and setup
- Optional smart plug-in probes, including thermoanemometer, rotating vane and CO2 probes with calibration certificates
- User-customizable soft keys for quick access to common functions
- Input for one K-alloy thermocouple
- Integrated magnets for hands-free operation
- Calculate the percentage of outdoor air with IAQ probe
- Supports multiple languages
- Static and differential pressure measurement
- Air density compensation with on board barometric pressure sensor and temperature input
- Pitot probe duct traverse
- Programmable K-factors
- Print data from instrument with optional USB portable printer (802241)
Standard package includes
- 9630 Instrument
- 964 Probe
- Wrist strap
- Wrist strap
- Static pressure probe
- 8ft. (2.4m) tubing
- Carrying case
- 4 AA alkaline batteries
- USB cable
- Owners manual & calibration certificate
