Vivax Metrotech | See more Other Meters | See more Borescopes & Inspection Cameras

vCam MX2 Borescope - VMX-150A-D26HDR

ORDER ME IN
Product code: VMX-150A-D26HDR

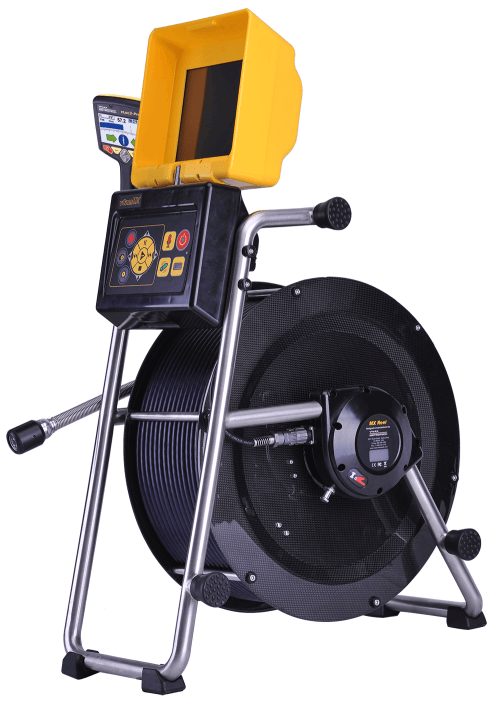

The vCam MX2 is the updated model of the popular vCam MX a portable all-in-one mini CCTV inspection system for viewing the internal condition of pipes, conduits, ducts and similar tubes between 25 and 100 mm diameter. It is a tool to inspect and provide a digital recording in and JPEG images of the interior of small diameter metallic and non-metallic, pipes, drains, conduits, and ducts. The most typical application is the inspection of sewer laterals and plumbing. Digital video and jpeg picture images are viewed on the control module LCD and recorded onto a USB thumb drive.

Read more

The vCam MX2 is the updated model of the popular vCam MX a portable all-in-one mini CCTV inspection system for viewing the internal condition of pipes, conduits, ducts and similar tubes between 25 and 100 mm diameter. The control module houses the 8 daylight-viewable LCD screen which displays the images from the remote camera, attached to the exible pushrod.
The LCD displays the distance of pushrod deployed, as well as the current time and date. The system records in avi video format and takes pictures in JPEG format directly to a USB thumb-drive and can be instantly backed up to an SD card. The internal microphone allows the user to add audio commenting over what recorded to highlight sections of the video and aid in identifying the video.
Flexible pushrod is available in either 30 or 45 meter lengths. The pushrod is traceable with the use of an external pipe and cable locator transmitter and a locatable dual frequency sonde comes as standard equipment.

Specifications

- Display: 8 (20cm) Daylight viewable TFT LCD (800x600) (diagonal measurement)
- Distance Counter: Approximate distance is shown (forward and backwards) in feet or meters on the LCD screen with the option to appear in still images or recorded video
- Environmental: Water resistant to IP65 (IEC 60529-Light shower) (lid closed) / Shock resistant (IEC 60068-2-31) (lid closed)
- Temperature Range (Storage): -20 to +70 C
- Temperature Range (Operating):-10 to +50 C
- Internal Batteries: Internal Lithium-ion rechargeable batteries. Six hours runtime when Sonde on, Seven hours with Sonde off
- Mounting: Permanently mounted on the MX reel frame
- Operating System: Firmware upgradable via USB port with files available from the local distributor, factory or Vivax-Metrotech website
