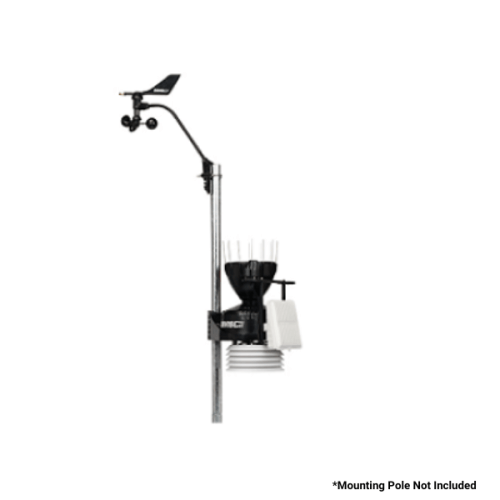

Vantage Pro2 Groweather Cabled Sensor Suite
ORDER ME IN
Order Me In, once ordered this item will likely dispatch before the 04th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
A versatile integrated, corrosion-proof sensor suite that combines our anemometer, rain collector, and temperature, humidity and solar irradiance sensors into one package for rugged reliability and performance.
Regular price
$1,401.00 AUD
+ GST
$1,541.10 AUD Inc. GST
$1,541.10 AUD Inc. GST
Please note: Can only be shipped to Australian customers
A versatile integrated, corrosion-proof sensor suite that combines our anemometer, rain collector, and temperature, humidity and solar irradiance sensors into one package for rugged reliability and performance.
Specifications
General
- Operating Temperature: -40 to +65 C
- Non-operating Temperature: -40 to +70C
- Current Draw (ISS SIM only): 5 mA (average) at 4 to 6 VDC
- Connectors, Sensor: Modular RJ-11
- Cable Type: 4-conductor, 26 AWG
- Cable Length, Anemometer: 12 m (included), 73 m (maximum recommended)
- Wind Speed Sensor: Solid state magnetic sensor
- Wind Direction Sensor: Wind vane with potentiometer
- Rain Collector Type: Tipping bucket, 0.2 mm with metric rain adapter, 214 cm2 collection area
- Temperature Sensor Type: PN Junction Silicon Diode
- Relative Humidity Sensor Type: Film capacitor element
- Housing Material: UV-resistant ABS
- Mounting Pole Not Included
- ISS Dimensions (not including anemometer or bird spikes): 363 mm x 246 mm x 368 mm
Sensors
Relative Humidity (Outside)
- Resolution: 1%
- Range: 1 to 100% RH
- Accuracy: 2%
- Drift: <0.25% per year
Rainfall
- Resolution: 0.2 mm (user-selectable) (1 mm at totals; 2000 mm)
- Daily/Storm Rainfall Range: 0 to 999.8 mm
- Monthly/Yearly/Total Rainfall Range: 0 to 6553 mm
- Accuracy: For rain rates up to 100 mm/hr: 4% of total or one tip of the bucket (0.2mm), whichever is greater.
- Update Interval: 20 to 24 seconds
Rain Rate
- Resolution and Units: 0.1 mm (user-selectable) at typical rates (see Fig. 2 and 3)
- Range: 0 to 2438 mm/hr)
- Accuracy: 5% for rates less than 5" per hour (127 mm/hr)
- Update Interval: 20 to 24 seconds
Solar Radiation
- Resolution and Units: 1 W/m2
- Range: 0 to 1800 W/m2
- Accuracy: 5% of full scale (Reference: Eppley PSP at 1000 W/m2)
- Drift: up to 2% per year
- Cosine Response: 3% for angle of incidence from 0 to 75
- Temperature Coefficient: -0.067% per F (-0.12% per C); reference temperature = 77 F (25 C)
- Update Interval: 50 seconds to 1 minute (5 minutes when dark)
Temperature (Outside)
- Resolution: 0.1 F or 1 F or 0.1 C or 1 C nominal C is converted from F rounded to the nearest 1 C
- Range: -40 to +150 F (-40 to +65 C)
- Sensor Accuracy: 0.5 F (0.3 C) See Fig. 1
- Radiation Induced Error (Passive Shield): +4 F (2 C) at solar noon (insolation = 1040 W/m2, avg. wind speed < 2 mph (1 m/s)
- Radiation Induced Error (Fan-Aspirated Shield): +0.6 F (0.3 C) at solar noon (insolation = 1040 W/m2, avg. wind speed < 2 mph (1 m/s))
- Update Interval: 10 to 12 seconds
Wind and Wind Direction
- Range: 0 - 360
- Display Resolution: 16 points (22.5) on compass rose, 1 in numeric display
- Accuracy: 3
- Update Interval: 2.5 to 3 seconds
- Wind Speed Resolution and Units: 1 mph, 1 km/h, 0.4 m/s, or 1 knot (user-selectable). Measured in mph, other units are
- converted from mph and rounded to nearest 1 km/hr, 0.1 m/s, or 1 knot.
- Wind speed range: 0 to 200 mph, 0 to 173 knots, 0 to 89 m/s, 0 to 322 km/h
- Update Interval: Instant Reading: 2.5 to 3 seconds, 10-minute Average: 1 minute
- Wind speed accuracy: 1 mph (1 kts, 1.5 km/h, 0.5 m/s) or 5%, whichever is greater
- Maximum Cable Length: 240 feet (73 m)
Warranty
- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
