V-E-400 Emodumeter

ORDER ME IN
Product code: V-E-400

Backorder Now, once ordered your item will dispatch before the 11th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The James Instruments Emodumeter, is used for resonant frequency testing and determining young's modulus and poisson's ratio.

-Determine: Young's Modulus, Modulus of Rigidity, Poissons Ratio, Damping Constant.

-Automatic identification of the resonance frequency.

-Large easy to view display for data analysis.

-Data can be stored and uploaded to a PC for further analysis.

Read more

$25,231.00 AUD + GST
 $27,754.10 AUD Inc. GST
The James Instruments Emodumeter, is used for resonant frequency testing and determining young's modulus and poisson's ratio.
Features:
-Determine: Young's Modulus, Modulus of Rigidity, Poissons Ratio, Damping Constant.
-Automatic identification of the resonance frequency.
-Large easy to view display for data analysis.
-Data can be stored and uploaded to a PC for further analysis.

Specifications

- Frequency Range: 10 Hz to 40 kHz
- Sampling Frequency: 10, 20, 40 or 80 kHz
- Frequency Resolution: 4.9 to 78.1 Hz
- Record Length: 1024 or 2048 points
- Output Bias Level: 9.2 V
- Accelerometer Sensitivity: 9.60 mV/g (0.979 mV/m/s)
- Battery: 14.4 Volt. 4-6 hours - continuous use
- Display: 320 by 240; backlit for daylight use
- Storage: 200 plus readings
- Software: Windows compatible 32MB RAM
- Impactors: Set of 6 hardened steel balls

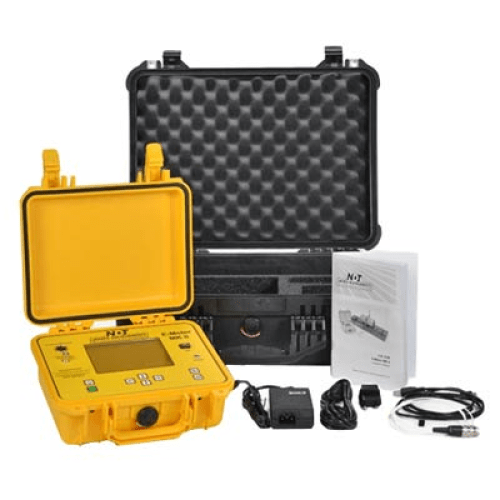

Includes:
- Carrying Case
- Emodumeter Instrument
- Instruction Manual
- AC Power Adapter
- 240 VAC Adapter Plug
- USB Cable
- Accelerometer Pickup Cable
