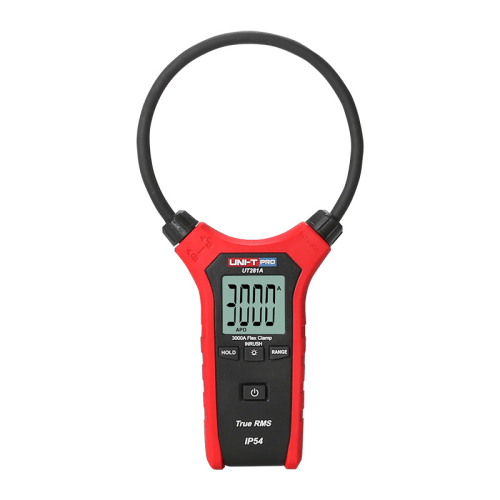

UT281A True RMS Flex Clamp - UT281A
Backorder Now, once ordered your item will dispatch before the 07th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The UT281 series can measure large currents in various harsh and hard to reach environments. They are designed with Rogowski flex coil and can test up to 3000A AC current.
- AC current (A) range of 30A/300A/3000A and Frequency response of 45Hz~500Hz (sine wave).
- Flex coil size: 25.4cm; radius:3.8cm.
- Has IP54 protection.
Regular price
$169.10 AUD
+ GST
$186.01 AUD Inc. GST
$186.01 AUD Inc. GST
UT281 series can measure large currents in various harsh and hard to reach environments. They are designed with Rogowski flex coil and can test up to 3000A AC current. UT281A/C are from UNI-Ts Pro Line series, which meet IP54 and 2m drop proof requirements. Due to the ease in operation, accurate readings, stable performance and reliable quality, these flex clamps are ideal tools for electricians.
2 Years Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
Features:
- 2m drop proof, ETL/Intertek certified 3rd edition CE
- Coil diameter: 0.75cm, bending length: 45.7cm
- Large LCD display for clear reading
- True RMS
- Long press INRUSH key for 2s to measure inrush current
- Data hold, backlight, auto power off
Specifications
- AC current (A): 30A/300A/3000A (3%+5)
- Frequency response: 45Hz~500Hz (sine wave)
- Inrush current: 0.5A~3000A (for reference)
- Range selection: Manual
- Flex coil size: 25.4cm. radius: 3.8cm
- Display count: 3000
- Refresh rate: 3 times/s
- True RMS: Yes
- Display interface (LCD): Single
- Functions: Data hold/Buzzer, Auto power off, Low battery indication, Backlight/Function selection
- Drop test: 2m drop test
- IP rating: IP54
- Power: 1.5V battery (R03) x 3
- Display: 32 x 34mm
- Product net weight: 220g
- Product size: 300mm x 150mm x 55mm
