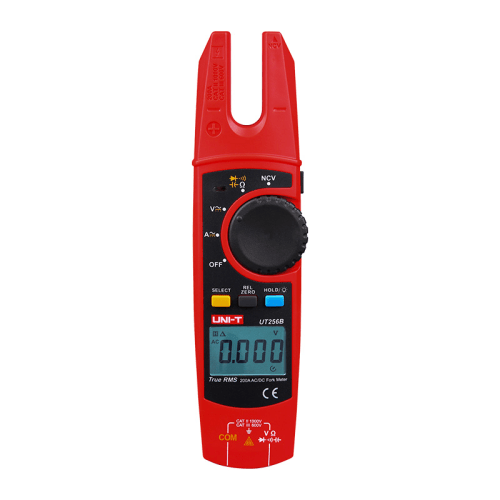

UT256B 200A True RMS Fork Meter - UT256B

3 AVAILABLE
Availability Info (?)

Order now and the extra items will likely dispatch before the 25th Dec 2025. Call 1300 737 871 (NZ 0800 737 871) to confirm.

Product code: UT256B
The UT256B series is a highly reliable, true RMS fork meters. Its unique design allows users to measure current by simply moving the wire of interest inside the opening of the ‘fork’ to the labeled mark.

  • This model can measure AC voltage (V) up to 750V.
  • With no mechanical parts, this meter bares no risk from any type of mechanical failure.
  • True RMS meter with continuity buzzer and auto range.

Read more

$151.86 AUD + GST
 $167.05 AUD Inc. GST
UT256 series are high reliable, true RMS fork meters. Its unique design allows users to measure current by simply moving the wire of interest inside the opening of the fork to the labeled mark. With no mechanical parts, this meter bares no risk from any type of mechanical failure.
2 Years Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
Features:
- Auto range
- True RMS
- Data hold
- Auto power off
- Continuity buzzer
- Low battery indication: 2.4V
- Input protection
- LCD backlight

Specifications

- Safety ratings: CAT II 1000V, CAT III 600V
- AC current (A): 200A +/- (2.5% +5)
- DC current (A): 200A +/- (2.5% +5)
- AC voltage (V): 750V +/- (1.2% +3)
- DC voltage (V): 1000V +/- (0.8% +3)
- Resistance (ohms): 60 milliohms +/- (1% +2)
- Capacitance (F): 60mF +/- (4% +20)
- Display count: 6000
- Diode test: About 3V
- Modes: NCV, Zero mode, Relative mode
- Power: 1.5V battery (LR6) x 2
- Display: 36.5mm x 24mm
- Product net weight: 248g
- Product size: 210mm x 53mm x 35mm
