UNI-T | See more Electronic Related Meters

UT219DS Professional Clamp Meter - UT219DS

5 AVAILABLE
Availability Info (?)

Order now and the extra items will likely dispatch before the 31st Oct 2025. Call 1300 737 871 (NZ 0800 737 871) to confirm.

Product code: UT219DS

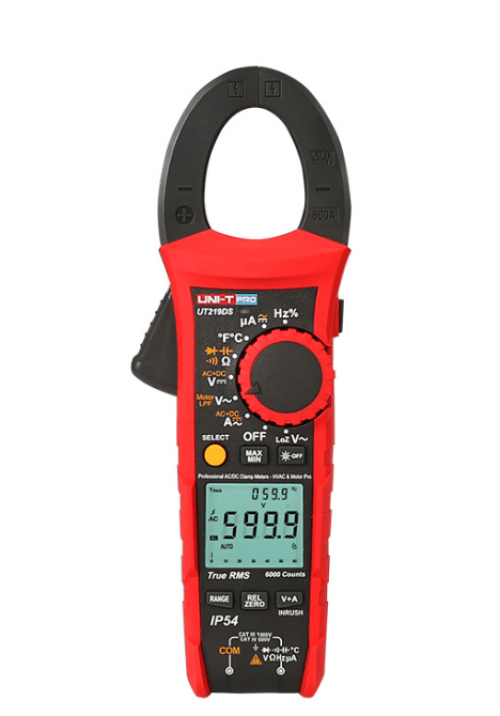

The UT219DS is a 600A true RMS professional clamp meter with CAT IV 600V rating.

  • Frequency range of 600Hz to 40MHz with 3-phase motor sequence test and dual display.
  • With IP54 rating and able to withstand 2 meters drop test.
  • Suitable for professional electricians, HVAC/R and motor service technicians.

Read more

$279.80 AUD + GST
 $307.78 AUD Inc. GST
The UT219 series of clamp meters are 600A True RMS professional clamp meters with CAT IV 600V rating. They are industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians.
The UT219DS is a True RMS clamp meter with 3-phase motor sequence testing with dual display that shows current and voltage readings at the same time.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
Features:
- Auto/manual range/ZERO mode
-3-phase motor sequence testing
- Dual display
- True RMS/auto power off
- MAX/MIN
- IP54/2m drop proof
- Data hold/relative mode
- Flashlight and auto backlight
- Low battery indication

Specifications

- AC current (A) Range: 600A +/- (1.8%+6)
- DC current (A) Range: 600A
- AC voltage (V) Range: 1000V +/- (1%+6)
- DC voltage (V) Range: 1000V +/- (0.6%+3)
- LoZ ACV Range: 600V +/- (2.5%+6)
- Resistance (ohms): 60 milliohms
- Capacitance (F): 60mF +/- (4%+7)
- Frequency (Hz): 600Hz to 40MHz +/- (0.1%+6)
- Duty cycle: 0.1% to 99.9% +/- (2.6%+7)
- Temperature: -40 to 1000 C +/- (2%+5 C)
- Display count: 6000
- Auto/Manual range: Yes
- Jaw opening: 33mm
- True RMS: Yes
- AC current frequency response: 40Hz to 400Hz
- AC voltage frequency response: 40Hz to 400Hz
- Low pass filter: 1kHz, 3db attenuation
- Diode test: 3V
- Measurement sampling rate: 5 times/s
-Analog bar sampling rate: 20times/s
-Analog bar: 31 segments
- Display interface (LCD): Dual
- Functions: Auto power off/MAX/MIN, Low battery indication, Data hold (H)/Relative mode (REL), ZERO mode, Function selection (SELECT), Auto backlight/2m drop test
- IP rating: IP54
- Input impedance (less than or equal to 10 milliohms): Yes
- Power: 1.5V battery (R03) x 3
- Display: 35mm x 31mm
- Product color: Red and grey
- Product net weight: 310g
- Product size: 234.6mm x 82mm x 47mm
- Standard accessories: Test leads, batteries, carrying bag, PC software CD, point contact temperature probe
