UNI-T

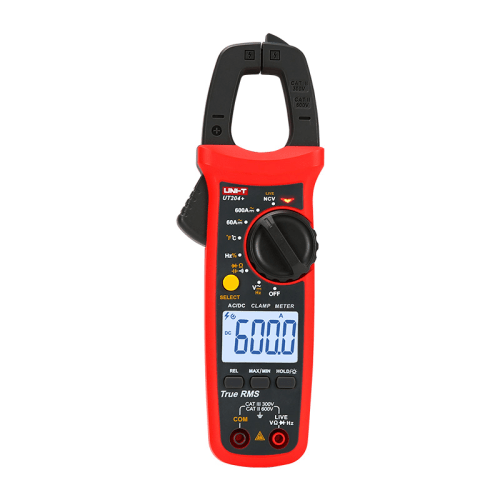

UT204+ 400A/600A Digital Clamp Meter

Name: UT204+ 400A/600A Digital Clamp Meter
Brand: UNI-T
SKU: UT204-PLUS
Price: 153.34 AUD
Availability: InStock

ORDER ME IN

Product code: UT204-PLUS

Backorder Now, once ordered your item will dispatch before the 28th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The UT200+ series digital clamp meters are designed according to EN61010-2010 CAT II 600V/CAT III 300V, featuring overload protection, high reliability, high safety and high accuracy.

Offers a wide capacitance measurement range.
Also features Neutral/live wire testing.
Can be used to measure high-voltage frequency, temperature, AC/DC current, etc.

$139.40 AUD + GST
$153.34 AUD Inc. GST

Product variants

The UT200+ series digital clamp meters are designed according to EN61010-2010 CAT II 600V/CAT III 300V, featuring overload protection, high reliability, high safety and high accuracy. This model offers a wide capacitance measurement range and also features Neutral/live wire testing.

2 Years Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)

Features:

- True RMS

- LCD backlight

- Large screen and display digits

- 60mF large capacitance measurement

- Neutral/live wire test

Specifications

- AC current (A):600A +/- (2.5% +5)

- Inrush current (A): 1000A +/- (10% +10)

- DC current (A): 600A +/- (2.5% +5)

- AC voltage (V): 600V +/- (0.8% +5)

- AC voltage frequency(Hz): 10Hz to 60kHz +/- (0.5%+2)

- DC voltage (V): 600V +/- (0.5% +2)

- Resistance (ohms): 60 milliohms +/- (0.8% +2)

- Capacitance (F): 60mF +/- (4% +5)

- Temperature: -40 to 1000 C +/- (1.5% +5)

- Frequency (Hz): 10Hz to 10MHz +/- (0.1% +4)

- Display count: 4000

- Jaw opening: 28mm

- Functions: True RMS, NCV, Live wire test, Continuity test, Diode MAX/MIN, Relative mode, Zero mode, Data hold, Low battery indication, Auto power off

- Power: 1.5V battery (R03) x 3

- Display: 37mm x 25mm

- Product net weight: 420g

- Product size: 272mm x 81mm x 43.5mm
