UT196 1700V DC True RMS Professional Multimeter – Solar Pro

9 AVAILABLE
Availability Info (?)

Order now and the extra items will likely dispatch before the 30th Oct 2025. Call 1300 737 871 (NZ 0800 737 871) to confirm.

Product code: UT196

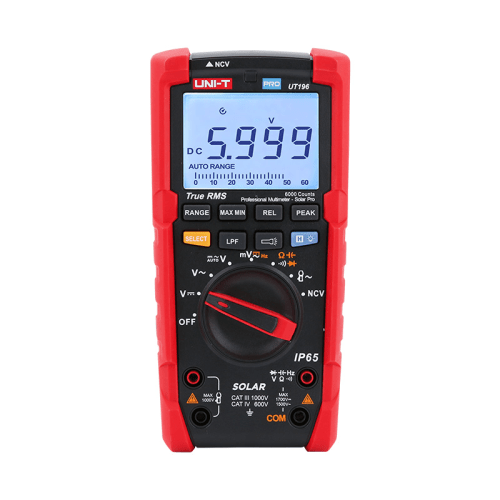

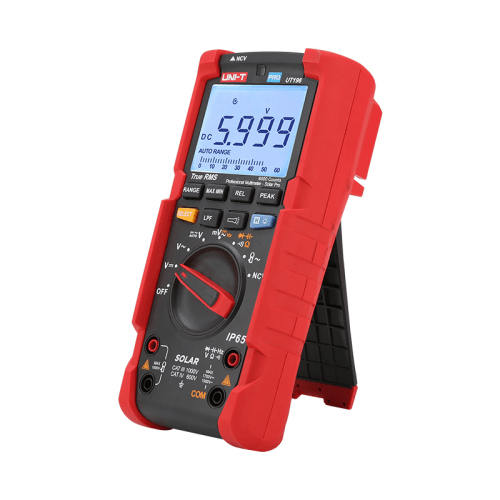

The T196 True RMS solar digital multimeter is an ideal tool for solar power system maintenance.

  • This rugged meter is designed for technicians who work in rugged outdoor environments.
  • The UT196 can measure up to 1700V DC and 1500V AC voltages, and 3000A AC current with an external current clamp sensor.
  • Has IP65 protection and able to withstand 2m drop as well.

Read more

$289.40 AUD + GST
 $318.34 AUD Inc. GST
UT196 True RMS solar digital multimeter is an ideal tool for solar power system maintenance. This rugged meter is designed for technicians who work in rugged outdoor environments. UT196 can measure up to 1700V DC and 1500V AC voltages, and 3000A AC current with an external current clamp sensor. This solar meter offers IP65 protection and able to withstand 2m drop as well.
UT196 solar digital multimeter is designed with 1700V DC, 1500Vrms AC overload protection and tested for safe usage in CAT III 1000V, CAT IV 600V environments.
2 Years Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
Features:
- True RMS
- Measure up to 1700V DC and 1500V AC for high voltage applications e.g. solar array, wind
- IP65 protection
- CAT III 1000V, CAT IV 600V
- Analog bar
- Frequency response45Hz~1kHz
- Low-pass filter function
- Low impedance mode
- Built-in flashlight, bright backlight and visual alarm

Specifications

- DC voltage(V): 1700V +/- (0.2%5)
- AC voltage(V): 1500V +/- (0.8%3)
- Frequency (Hz): 1MHz +/- (0.08%+4)
- Resistance(ohms): 60 miliohms +/- (0.8%2)
- Capacitance (F): 60mF +/- (1.9%+5)
- Display count: 6000
- True RMS: Yes
- Dual display: Yes
- Functions: Auto range, NCV, Diode test, Continuity, Relative mode, Max/Min, Peak hold, Data Hold, Auto power off
- Low pass filter(LPF): Yes
- Audible visual indication: Yes
- Low battery indication (less than 7.5V approximately): Yes
- Analog bar graph: Yes
- Flash light: Yes
- IP rating: IP65
- Drop test: 2m
- Safety rating: CAT III 1000V, CAT IV 600V
