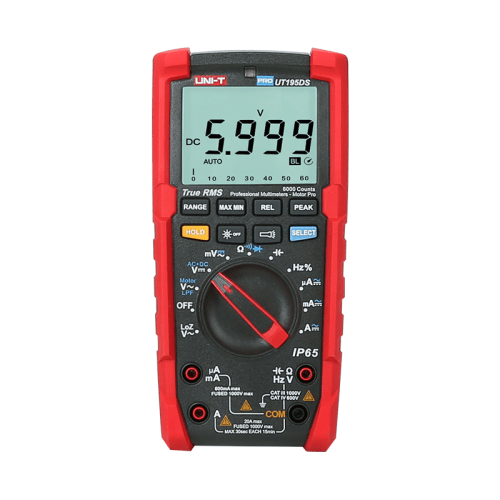

UT195DS Professional Multimeter - UT195DS
ORDER ME IN
Order Me In, once ordered this item will likely dispatch before the 12th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
The UT195DS is a handheld, industrial, True RMS digital multimeter designed find issues related to motor drive, factory equipment maintenance, electrical distribution, and repair etc.
- Provides LoZ voltage test, for ghost voltage measurement as well as AC voltage (V) measurement.
- Built with IP65 rating and has a 2m drop proof.
- Has a frequency testing range of 60Hz to 40MHz.
Regular price
$359.00 AUD
+ GST
$394.90 AUD Inc. GST
$394.90 AUD Inc. GST
The UT195M is a handheld, industrial, True RMS digital multimeter designed find issues related to motor drive, factory equipment maintenance, electrical distribution, and repair etc.
2 Years Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
Features:
- IP65 rating, 2m drop proof, CAT III 1000V, CAT IV 600V
- Large 6000-count LCD screen
- True RMS
- ACV 750V 5kHz bandwidth
- Flashlight
- Auto LCD backlight controlled by light sensor (can be turned off)
- LoZ voltage test, for ghost voltage measurement
- 20A current measurement (max 30 seconds)
Specifications
- DC voltage (V): 1000V +/- (0.5%+3)
- AC+DC: 750V +/- (0.7%+3)
- AC Voltage (V): 600V +/- 1.5% +4
- AC Voltage (V): 600V +/- 1.5% +4
- LoZ ACV: 600V +/- (2%+3)
- DC current (A): 20A +/- (0.8%+3)
- AC current (A): +/- (1%+3)
- Resistance (ohms): 60 milliohms +/- (0.8% +2)
- Capacitance: 60mF +/- (3% +5)
- Frequency: 60Hz to 40MHz +/- (0.1% +4)
- Duty cycle: 0.1 to 99% +/- 2% +5
- Duty cycle: 0.1 to 99% +/- 2% +5
- Display count: 6000
- Display interface (LCD): Single
- Measurement sampling rate: 3 times/s
- True RMS: Yes
- AC voltage frequency response: 45 to 1kHz
- AC current frequency response: 45 to 1kHz
- 3-phase motor sequence test: 600V
- Diode/Continuity test: 3V
- Functions: Auto/Manual range, Continuity buzzer, Low battery indication, Data hold/Auto power off, MAX/MIN, Function selection, Flashlight/Auto backlight
- Power: 9V battery
- LCD size: 66mm x 51mm
- Product color: Red and grey
- Product net weight: 437g
- Product size: 195mm x 95 mm x 58mm
