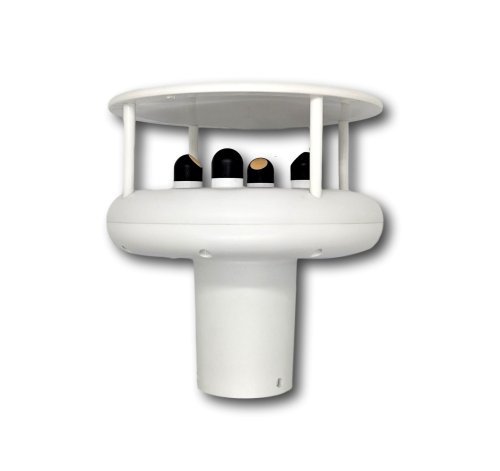

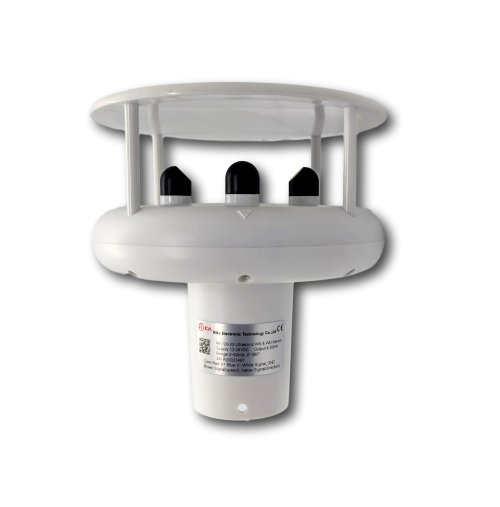

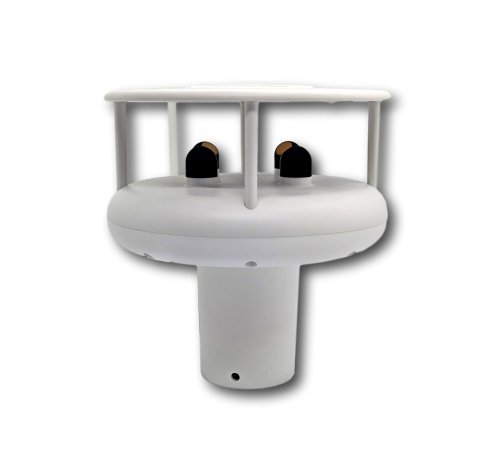

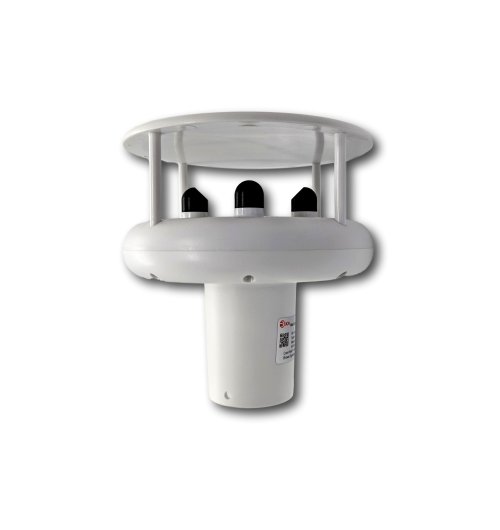

Ultrasonic Wind Speed & Direction Sensor - IC-RK120-03

3 AVAILABLE
Availability Info (?)

Order now and the extra items will likely dispatch before the 22nd Oct 2025. Call 1300 737 871 (NZ 0800 737 871) to confirm.

Product code: IC-RK120-03
Ultrasonic Wind speed & direction sensor. Wind speed range of 0-45m/s and 0-360 wind direction. IP65 protection, cable length: 4m.

Read more

$1,839.70 AUD + GST
 $2,023.67 AUD Inc. GST
Features:
- Adapt to complex weather conditions
- No moving parts, long service life
- The surface preservative treatment
- Strong anti-interference
- High accuracy
- Automatic heating anti-frozen

Specifications

Wind Speed:
- Range: 0-45m/s, 0-60 m/s
- Resolution: 0.01m/s
- Accuracy (<=10m/s) +/- 0.2m/s;
- Accuracy (>10m/s) less than +/- 2% the current value
- Starting threshold: 0.1 m/s
- Extreme wind speed: 60 m/s
Wind Direction:
- Range: 0-360
- Resolution: 1
- Accuracy: +/- 3
- Starting threshold: 0.1 m/s
- Extreme wind speed: 60 m/s

Specifications

- Power Supply: 12-24VDC
- Power consumption: <1W(Heating not activated);<3W(Heating activated)
- Output Signal: RS232/RS485(Modbus /NMEA-0183),4-20mA (only for wind speed & direction) optional
- Operating Temperature: -30 C to +70 C
- Ingress Protection: IP66
- Heating power: 3W max.
- Electronic Compass: Optional
- Atmospheric Pressure: Optional
- Dimension: 145*138 mm
- Weight(unpacked): 0.8kg
- Main material: Anti-radiation ABS Engineering plastic
