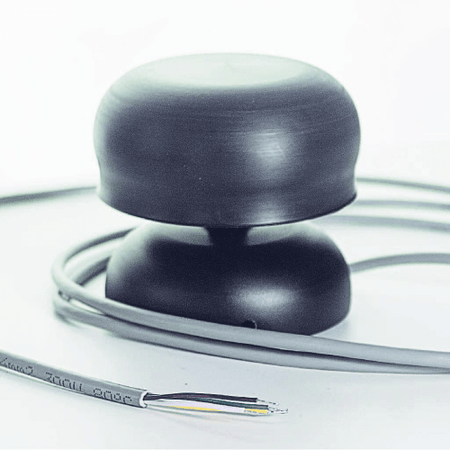

Ultrasonic ULP 485

DISCONTINUED
Product code: IC-ULP-485

Unfortunately, the ULP-485 had been discontinued, check out our other Anemometers for more options.

The ULP 485 is an IoT, ultrasonic anemometer with a measurement range of 40 m/s. Affordable, portable, with no moving parts, easy to install, accurate, and open to third parties apps.

Read more

Specifications

- Wind Speed Range: 0 to 40 m/s
- Wind Speed Resolution: +/- 0.1 m/s at 10m/s
- Wind direction Range: 0 - 360 degrees
- Wind direction Resolution: +/- 1 degree
- Dimensions: Diameter: 68 mm; Height: 65 mm.
- Weight: 210 grams (Down to 130 grams if requested)
- Sensors: Sample rate: 0.1 Hz to 20 Hz; Ultrasonic transducers (4x)
- Power: 3.3-24 DCV.
- Pwr consumption: 0.4 mA at 38400 bauds, 1 Hz. (5V)
- Data output: NMEA0183 (RS422, RS485) / POLL output /
- Firmware: Upgradable
- IP Code: NOT allow to be submerged fully or partially in water.

Configuration options:

- Baudrate: 2400 to 115200 (8n1) bauds
- Output rate: 0.1 to 20 Hz.
- Output units: m/sec., Knots or Km/h.
