Calypso Marine Instruments | See more Environment Meters | See more Anemometers and Wind Meters

Ultrasonic Portable Mini Wind Meter (25 m/s) - IC-CMI1022

ORDER ME IN
Product code: IC-CMI1022

Order Me In, Once ordered this item will likely dispatch before the 05th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

A miniature, wireless, ultrasonic anemometer and wind vane for measuring wind speed and wind direction.

  • One of the smallest anemometer in the market with a speed range of 25 m/s.
  • Built with no moving parts making it dependable, robust and easy to mount.
  • Does not require any cables or connections; connect to your smart device via Bluetooth or Wifi.

Read more

$520.00 AUD + GST
 $572.00 AUD Inc. GST
A miniature, Bluetooth, Battery powered, ultrasonic anemometer and wind vane.
Built with ULTRASONIC sensors, with no moving parts to make it robust and dependable, the Ultrasonic Portable Mini is a wind meter that measures both speed and direction, allowing data logging via a free app.

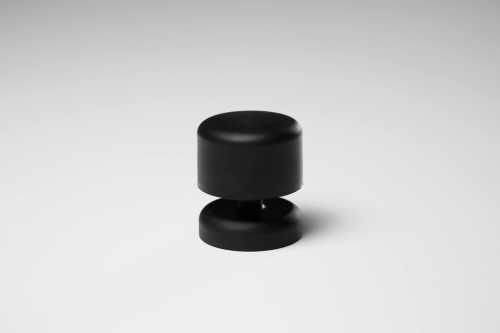

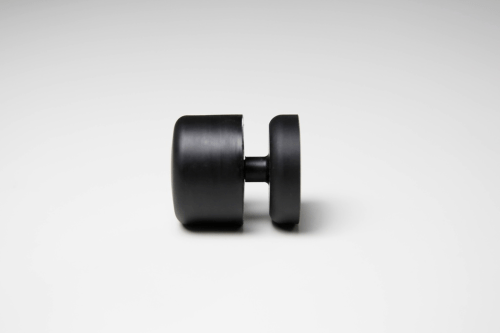

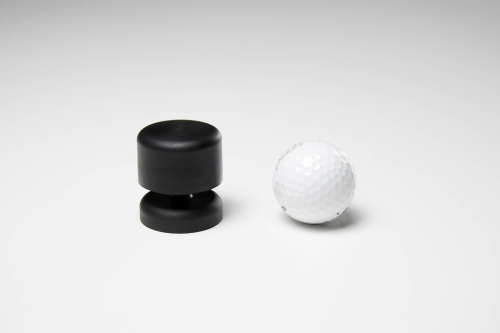

With just 43 mm diameter the Ultrasonic Portable MINI is a fully handheld, complete wind instrument.
It's size makes it an ideal stand-alone wind meter of great value on a wide range of industries and applications.
Simple mount
The Ultrasonic portable MINI has a female thread (1/4") perfect to be mounted on any tripod.
Wireless and Battery Powered
Thanks to its Bluetooth connection, the Ultrasonic Portable Mini can be recharged on a wireless charged pad connected via USB to the power.
Its Bluetooth connection avoids the hassle of wiring it to a display. Still, if you want to connect the Ultrasonic Portable to a display or network, you can use one of our gateways: the NMEA Connect Plus gets the Portable Bluetooth signal and converts it to a wired or NMEA0183 or NMEA2000 signal. It also relays the Bluetooth signal and casts NMEA0183 data via WiFi.
3 Years Warranty (2 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)

Specifications

- Material: Machined engineering plastic (black)
- Diameter : 43 mm (1.69 in.)
- Height : 47 mm (1.85 in.)
- Weight : 78 grams (2.75 oz.)
- Wind Speed Range: 1-25 m/s (2.24 - 56 mph)
- Wind Speed Accuracy: 0.3 m/s at 10 m/s ( 0.67 mph at 22.40 mph)
- Wind Direction Range: 0-359 degrees
- Wind Direction Accuracy: 1
- Wind Information: Aparent and real wind speed & direction via Ap
- Sensors: Ultrasonic transducers ( 4x)
- Sample rate: 1 Hz
- Power: Battery powered ( Wireless charging QI)
- Battery runtime: 150 hours of active use
- Data Output: Bluetooth 5.1. NMEA 2000 if used with NCP
- Bluetooth Range: up to 30 m ( 98 ft.)
- Firmware: Upgradable via Bluetooth
- IP Code: IPX8 protection grade
- Mount: Tripod mount - female thread screw
- Compatibility: Android & IOS devices, tablets, Garmin watches
- Data Output: Bluetooth
