Temp, RH, Pressure,Shock Recorder-Extended Battery Life (5G)
Unfortunately, the ULTRASHOCK-5-EB has been discontinued and has been replaced by the ULTRASHOCK-15.

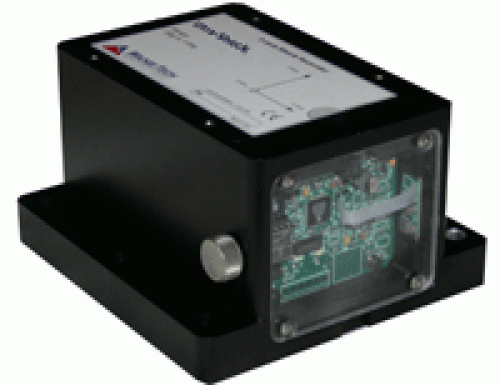

The UltraShock-EB is a battery powered, stand alone temperature, pressure, humidity and 3-axis shock data logger which offers a battery life of up to 60 days typical. The UltraShock measures and records data for temperature, pressure and humidity at user selectable reading rates, while shock/acceleration data is sampled at 512Hz and at the user-specified reading rate, writes the peak acceleration (g force) to memory.
The UltraShock-EB is specifically designed for documenting dynamic environments such as moving vehicles, trucks, containers, ships, etc. The device is also valuable in characterizing environments such as production and assembly lines of delicate electronics, IC fabrication, communications and computer components. This is an all-in-one compact, portable, easy to use device that will measure and record data for up to 174,762 measurements per channel. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged.
The device can be started and stopped directly from your computer. The UltraShock-EB makes data retrieval quick and easy. Simply plug it into an empty USB port and our user-friendly software does the rest.
TEMPERATURE
|
Temperature Range |
-20~+60C
|
|---|---|
|
Temperature Resolution |
0.1C
|
|
Temperature Calibrated Accuracy |
0.5C
|
HUMIDITY
|
Humidity Range |
0~95%RH
|
|---|---|
|
Humidity Resolution |
0.5%RH
|
|
Humidity Calibrated Accuracy |
3%RH
|
PRESSURE
|
Pressure Range |
0~30 PSIA
|
|---|---|
|
Pressure Resolution |
0.002 PSIA
|
|
Pressure Calibrated Accuracy |
1%FSR at 25C
|
SHOCK
|
Shock Acceleration Range |
5g
|
|---|---|
|
Shock Resolution |
0.01
|
|
Shock Calibrated Accuracy |
0.2
|
GENERAL
|
Memory |
174,762/channel
|
|---|---|
|
Reading Rate |
64Hz to 5 minutes for shock, selectable in software.
|
|
Baud Rate |
115,200
|
|
Battery Life |
60 days
|
|
Material |
Anodized aluminum
|
|
Dimensions |
5.5" x 5.4" x 3.2" (140mm x 137mm x 80mm)
|
|
Operating Environment |
-20~+54C, 0~95%RH non-condensing
|
|
Required Interface Package |
IFC200
|
|
Approvals |
CE
|
