Temp, Humidity, Pressure And Tri-Axial Shock Recorder (300G)
Backorder Now, once ordered your item will dispatch before the 21st of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$2,649.35 AUD Inc. GST

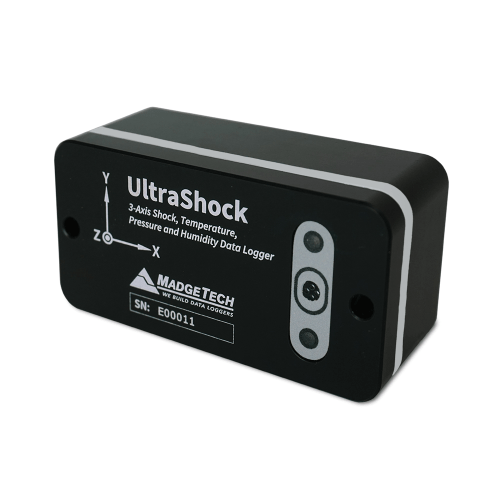

The new UltraShock contains powerful improvements and an all-in-one functionality, allowing it to replace all current shock models and their capabilities. New refinements also include a smaller, lighter design and LED status indicators.
Additional features include a significantly improved battery life and the use of a USB-C cable, making it easily rechargeable. Each UltraShock purchase contains an AC adapter and USB cable, eliminating the need for an additional interface cable.
The UltraShock is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
Specifications
Temperature:
- Sensor: Semiconductor
- Range: -20 C to +60 C
- Resolution: 0.1 C
- Accuracy: +/- 0.5 C (+5 C to +60 C)
Humidity:
- Sensor: Capacitive Polymer
- Range: 0 %RH to 95 %RH
- Resolution: 0.1 %RH
- Calibrated Accuracy: +/- 3 %RH (+/- 2 %RH typical at 25 C)
- Specified Accuracy Range: +20 C to +40 C; 20 %RH to 80 %RH
Pressure:
- Sensor: Semiconductor Strain Gage
- Range: 100 mbar to 1300 mbar
- Resolution: 0.05 mbar
Shock:
- Accelerometer Type: MEMS Semiconductor
- Acceleration Range (g): +/- 300 g
- Acceleration Resolution (g): 0.2 g
- Calibrated Accuracy (g): +/- 6.0 g
- Sampling Rate: 1000 Hz
- Accelerometer Freq. Resp.: >500 Hz
- Reading Rate: 1024 Hz to 5 minutes for shock, selectable in software. Temperature, pressure & humidity sampled approx. every 2 seconds at
intervals shorter than
2 seconds. Otherwise, sampled at the reading rate.
- Calibrated Accuracy: +/- 1.5 mbar at 25 C; at 750 mbar
General:
- Memory: 3,593,358 readings (598,893 per channel, all channels in use)
- Battery Life: 90 days typical at 64Hz rate
- Material: Anodized aluminum
- Dimensions: 3.4 in x 1.7 in x 1.3 in (86 mm x 43 mm x 33 mm)
- Operating Environment: -20 C to +60 C, 0 %RH to 95 %RH non-condensing
- Required Interface Package: USB-C cable required (included); 1MBaud
- Approvals: CE compliant, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EU
- IP Rating: 64
