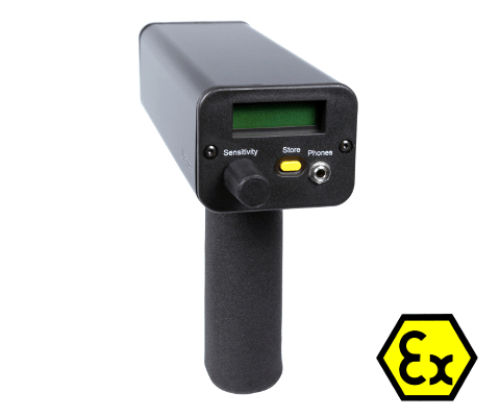

Ultraprobe 9000 ATEX

ORDER ME IN
Product code: UP9000ATEX

Backorder Now, once ordered your item will dispatch before the 22nd of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The UP9000ATEX is an ultrasonic monitoring instrument for efficient ultrasound data collection, inspection & analysis. It is an upgraded version of the Ultraprobe 9,000 and is now certified for the mining industry and for monitoring specific gasses such as methane, propane and ethylene.

-Inspect electrical systems for faults, analyze on the spot & report.

-Simple to use and can be learned in 15 minutes allowing you to move you through inspections quickly and easily.

-With dust proofing and certified safe for use with methane, propane and ethylene.

Regular price $13,927.00 AUD + GST
$15,319.70 AUD Inc. GST
The Ultraprobe 9000 is a digital ultrasonic inspection, information, storage and retrieval system thats versatile and easy to use.
Whether used for troubleshooting or a pre-planned route, data is easily viewed on the display panel and stored with the push of a button. The easy-to-read display panel offers calibrated decibel readout and a 16-segment bar graph, which instantly registers sound intensity changes and simultaneously registers peak hold as you scan.
- Establish a bearing route to identify early bearing failure & lubrication problems
- Find your leaks & report cost per leak with DMS reporting
- Inspect for faulty steam traps
- Inspect electrical systems for discharge problems
Why Choose this instrument?
- Easy to use
- Adjustable Frequency from 20 kHz to 100 kHz
- Accurate & repeatable digital data
- Ideally for point & shoot trouble shooting & data collection programs
- Comes with license free data management software (DMS) to efficiently manage & report asset condition
- For use in ATEX or EX zones without the need for exempt work permits
Intrinsically Safe / ATEX:
FM & CSA approved intrinsically safe:
- Class I, division 1, groups C & D
- ATEX group IIB
- CE approved
- Concerned gasses: methane-propane-ethylene
ATEX I (dustproofing for mining industry):
- ATEX group I
On board data logging utilizing Ultratrend DMS providing:
- Manage routes
- Up & download via USB connection
- Multiple data views
- History tables/spread sheets
- Trend charts
- Export database & report documents to Excel
UE Systems unique Spin and Click technology makes sophisticated inspection simple and quick!
Youll be amazed at how much you can accomplish with only 2 controls. By just spinning and clicking you can go through your inspection quick and easy:
- Store data
- Change frequency and sensitivity settings
- Adjust basic operation modes
- Selecting Snap Shot, Peak Hold & Real Time functions, and more

Specifications

- Construction: Hand-held pistol type made with coated aluminium and ABS plastic
- Circuitry: Solid State SMD Digital Circuitry with temperature compensation
- Frequency: 20 kHz to 100 kHz (tunable in 1 kHz increments)
- Response Time: less than 10 ms
- Display: 16 x 2 LCD with LED Backlight
- Memory: 400 storage locations
- Battery: NiMH Rechargeable
- Operating Temperature: 0 to 50 C (32 to 122 F)
- Outputs: Calibrated heterodyned output, decibel (dB) frequency, USB data output
- Probes: Trisonic Scanning Module and Stethoscope Module
- Headset: Deluxe noise attenuating headphones for hard hat use
- Indicators: dB, Frequency, Battery Status and 16 Segment Bar Graph
- Sensitivity: Detects 0.127 mm (0.005 inch) diameter leak at 0.34 bar (5 psi) at a distance of 15.24 m. (50 ft.)
- Threshold: 1 x 102 std. cc/sec to 1 x 103 std. cc/sec
- Dimensions: 47 x 37 x 17 cm
- Weight (Pistol Unit): 0.9 kg
- Weight (Kit): 6.4 kg
The UP9000ATEX includes:
- ULTRAPROBE pistol grip housing is the main control unit. It consists of the display panel, the spin & click controls for volume/frequency adjustment, data entry and data storage, the headphone jack, battery, I/O port, trigger on/off switch and module receptacle.
- Deluxe industrial noise reducing headset
- Data cable I/O to USB
- Battery recharge kit for main housing and warble tone generator
- Zero Halliburton aluminum carrying case
- Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
- Rubber focusing probe for narrowing reception band of scanning module and for blocking out ambient ultrasound
- Stethoscope (contact type) probe for monitoring internal ultrasound such as in bearings, steam traps and valves
- Extension probe kit to increase stethoscope contact range to 31 inch (78 cm)
- Warble tone generator with amplitude selection switch for use in tone test method
- Comprehensive instruction manual
- License & update free included DMS software
